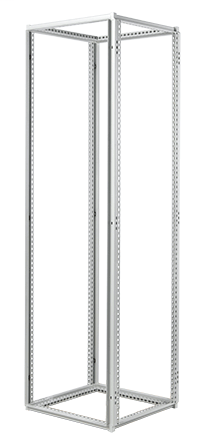

NVENT HOF P2F22128 FRAME 2200x1200x

Features

• Superior performance under load: 12 gauge (2.5 mm) roll-formed steel frame with welded corners, hybrid frame profile
• Wide range of standard options: 114 frame sizes; disconnect options, custom sizes on request
• Easy to assemble and use: 25 mm hole pattern on horizontal and vertical frame members, wide door opening, removable rear center post for frames greater than 1200 mm wide
• Welded corners with steel corner blocks
• 12 gauge (2.5 mm), roll-formed steel frame sections
• Hybrid frame profile
• Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
• Integral frame channels support the full weight of the mounting subpanel
• Frames greater than 1200 mm wide have a removable rear center post, and cross-members in the center top and center bottom; no front center post facilitates component installation
• Accommodates 25-mm DIN standard; rectangular frame holes designed for BV-M6 fastener or metric cage nut fasteners; round frame holes accommodate M5 self-tapping screws and allow numerous grounding locations using M5 thread-forming screws
• Uniform internal frame width to simplify component installation; universal frame member used for both horizontal and vertical frame sections to simplify component installation
• Simple means for joining frames to create multiple-bay enclosures
• Provisions for mounting subpanel, rack mounting and grid/rail system mounting

Notes

• HxWxD are nominal height, width and depth dimensions.

Accessories

• Frame joining kits (G2-G2 side-to-side, G2-G2 front-to-back, G2-Gen1, G2-R)
• Barrier panel
• BV-M6 fastener package
• T30 Torx screw package
• Panel support bracket
• Transformer rails
• Center upright
• Touch-up paint

Specifications

• Bulletin Number: P40
• Model Code: 31778
• Catalog Number: P2F22128
• A in.: 86.58
• B in.: 47.2
• C in.: 31.26
• H in.: 86.61
• W in.: 47.24
• D in.: 31.5
• Maximum Subpanel Size in.: 82.9 x 44.4
• Maximum Rack Mount Units: 47
