NVENT HOF P2G3R11 GRID STRAP 3ROW 1

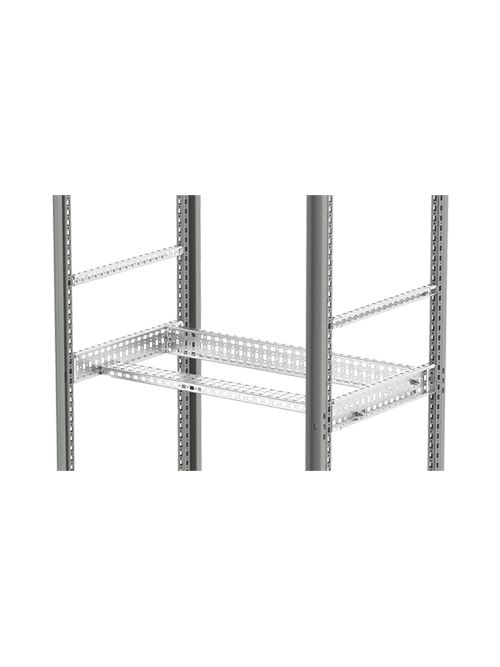

Product image thumbnail 0
Product image thumbnail 1
$135.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # P2G3R11
North Coast Part # 1687787

Features

  • Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
  • Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
  • Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
  • Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
  • Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be mounted vertically between other Grid Straps, as the assembly is on a single plane
  • Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid Straps, as the jogged tab introduces a second plane which may interfere with cover installation on the sides
  • Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel

Specifications

  • Fits Frame Width: 1,000 millimetre
  • Color: Unpainted
  • Finish: Galvanized
  • Material: Mild Steel
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351031872
GTiN 00783510318727
Family Brand Name Hoffman
Type Rack and Grid/Rail System
Applications Controls and Drives; Power Distribution
Finish Galvanized
Thickness 1.9 Millimetre mm
