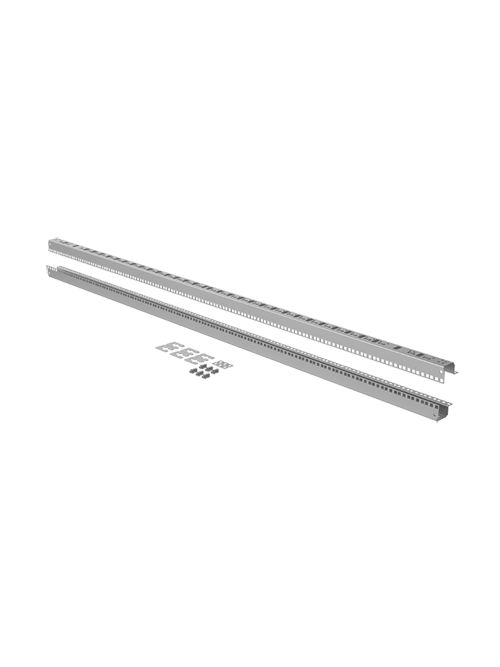

NVENT HOF P2RA19T6 PG2 RACK ANGLE 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$115.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # P2RA19T6
North Coast Part # 1342630

Features

  • Furnished in pairs
  • Can be mounted directly to the frame, or at variable depths using Adjustable Rack-Mounting Rails or Grid Straps; when mounted to the frame there is 44mm between the door opening and the Rack Angle mounting surface
  • Single-bay Frames: in a 600-mm wide frame, Rack Angles can be mounted in-line with the frame; in an 800-mm wide frame, Adjustable Rack-Mounting Rails or Frame Reducing Brackets are required (sold separately) to achieve the 19-inch rack spacing
  • Double-Bay Frames: in a 1200-mm wide frame, Center Uprights must be used to create a mounting surface in the center of the enclosure for either bay; in a 1600-mm frame, Center Uprights are again required in addition to Frame Reducing Brackets or Adjustable Rack-Mounting Rails to achieve the 19-inch rack spacing
  • Tapped-Hole Rack Angles accommodate 10-32 screws for equipment mounting
  • Square-Hole Rack Angles accept both metric and English cage nuts and screws: most commonly M5, M6, and 10-32 screws
  • Optional Shelves, Drawers, and Guides require two sets of Rack Angles to secure within the frame
  • All mounting hardware for Rack Angle installation into the frame is included; mounting hardware for securing rack-mount equipment/accessories to the Rack Angles is either supplied with the item or purchased separately
  • Tapped Rack Angles are constructed from 12 gauge (2.5 mm) conductive steel, while Square-Hole Rack Angles are from 14 gauge (1.75 mm) conductive steel
  • Load rating of 20 lbs (9.1 kg) per rack unit for equipment under 20-inches (508 mm) in depth; All equipment over 20-inches in depth requires rear rack angles for support

Specifications

  • Height (H) (inch): 20
  • Height (H) (millimetre): 509
  • Width (W) (inch): 2.56
  • Width (W) (millimetre): 65
  • Depth (D) (inch): 1.89
  • Depth (D) (millimetre): 48
  • Hole Type: Tapped
  • Fits Frame Height (millimetre): 600
  • Rack Units: 11
  • Color: Unpainted
  • Finish: Plated
  • Material: Mild Steel
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66

Overview

UPC 78351032627
Item Long Description The ProLine G2 Rack Angles mount using BV-M6 fasteners instead of the traditional cage nut and screw combination. The Rack Angle height and rack unit count are optimized for the ProLine G2 frame heights. Rack Angles have two mounting surfaces that function in the attachment of rack-mount equipment and accessories. Rack Angles comply with AN SI/EIA RS-310-D rack mounting standards.
GTiN 00783510326272
Family Brand Name Hoffman
Rack Unit 11
Type Rack and Grid/Rail System
Applications Controls and Drives
Finish Plated
Thickness 2.66 mm
Width 2.56 in
Depth 48 mm
Height 20 in
