Manufacturer Hoffman Engineering
Mfg Catalog # PCS208HF2
North Coast Part # 601059


  • Bulletin Number: P20
  • Material: Steel
  • Model Code: 11819
  • Ship Wt. Std. Pkg. (lbs): 33.1
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: PCS208HF2
  • A in.: 78.74
  • B in.: 31.5
  • Gauge: 14
  • H x W mm: 1939 x 792
  • H x W in.: 76.34 x 31.18
  • Cover Type: EMC
  • Fits Frame A x B: 2000 x 800


UPC 78351011819
GTiN 00783510118198
Finish RAL 7035
Width 31.5 in
Size fits 2000x800mm
Color Gray
Type Solid Covers
Material Steel

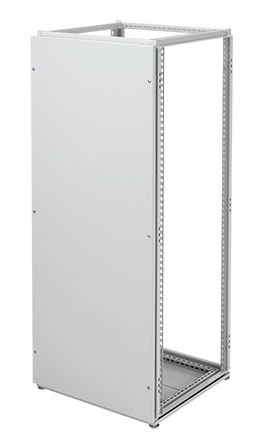

Applications Use a Solid Cover on the front or rear of the enclosure frame as a substitute for a door. Solid covers attach to the enclosure frame with semi-flush screws and include hangers for easy alignment of cover screws. Covers are painted RAL 7035 textured light-gray polyester powder paint (except stainless steel). EMC covers are finished with paint over plated surfaces. They include a foam-in-place urethane gasket and two ground studs. Mounting hardware is included.
Height 78.74 in
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Proline
