NVENT HOF PDS512F Door, Upper Front
Product image thumbnail 0
Product image thumbnail 1
$1,162.69/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PDS512F
North Coast Part # 600451

Features

  • Doors are hinged at lower edge and have quarter-turn latches
  • Ground stud and mounting hardware

Specifications

  • Material: Mild Steel
  • Door Size (H x W) (millimetre): 504 x 1192
  • Door Size (H x W) (inch): 19.86 x 46.92
  • Weight (pound): 26
  • Modification Services: Yes
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Sub Brand: ProLine
  • Size: fits 507/682x1200mm

Overview

UPC 78351036669

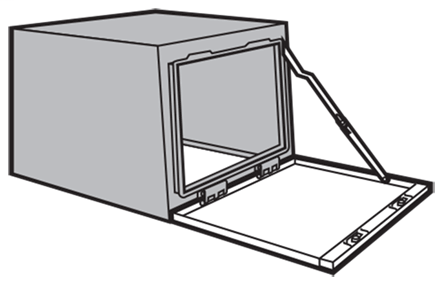

Item Long Description Solid doors are available with or without windows. Doors are hinged at lower edge and have quarter-turn latches. A stop arm assembly holds the door at 95 degrees (horizontal) from its closed position. Standard latch and insert options are available. Ground stud and mounting hardware are included. Seamless polyurethane foam-in-place gasket assures watertight and dust-tight seal. Window doors feature a maximum size .25-in.-thick polycarbonate window with a smoke-gray tint. Window is field-replaceable.
GTiN 00783510366698
Size fits 507/682x1200mm
Color Gray
Type Doors and Door Accessories
Material Steel
Applications Controls and Drives
Weight 26 lb
Family Brand Name Hoffman
Sub Brand ProLine
Finish Powder Coated
Thickness 1.52 mm
