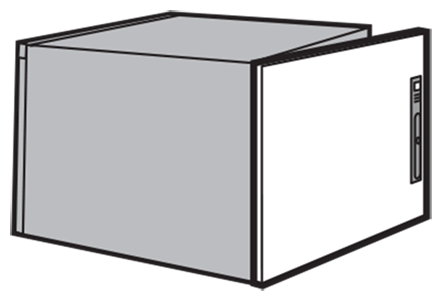

NVENT PDS5A8R Door, Upper Rear
$773.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PDS5A8R
North Coast Part # 600454

Overview

  • Bulletin Number: P9
  • Material: Steel
  • Model Code: 36879
  • Ship Wt. Std. Pkg. (lbs): 24.0
  • Interchangeable: False
  • Product Weight lbs.: 19.0

Description

  • Rear doors are side-hinged. The hinges are hidden and provide 130-degree door swing. Optional PROLINEā„¢ 180-Degree Hinge Kit is available (see PROLINE Solid Rear Door Accessories in this section). Doors can be hinged from left or right. Door includes two-point latching with a flush slotted quarter-turn insert. Standard PROLINE handle and insert options are available for retrofit (see PROLINE Solid Rear Door Accessories in this section). Use PROLINE Frame Shelf or PROLINE Grid Straps to support the operator interface. Ground stud and mounting hardware are included. Seamless foam-in-place gasket assures a watertight and dust-tight seal. Covers are Type 304 stainless steel or 16 gauge steel finished with RAL 7035 textured light-gray polyester powder paint.

Technical Data

  • Height (A) in.: 26.85
  • Width (B) in.: 31.5
  • Description: Steel
  • Door Size H x W in.: 26.75 x 31.17

Categories

Overview

UPC 78351036879
GTiN 7.8351E+11
Width 31.5 in
Size fits 682x800mm
Color Gray
Type Doors and Door Accessories
Material Steel
Applications Controls and Drives; Corrosive Environments
Height 26.85 in
Weight 19.0 lb
Family Brand Name Hoffman
Sub Brand ProLine
