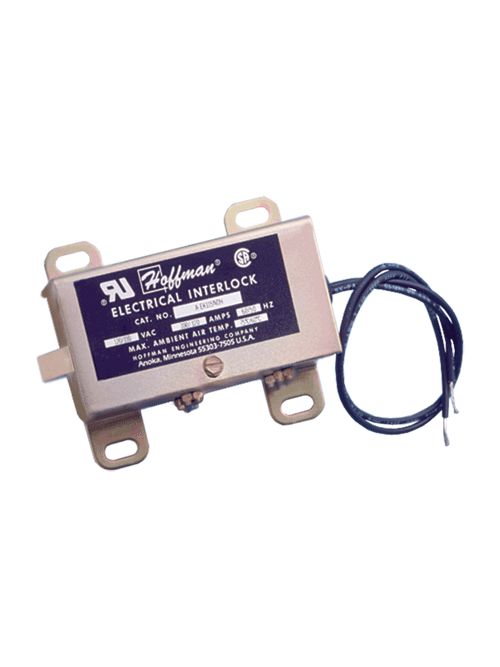

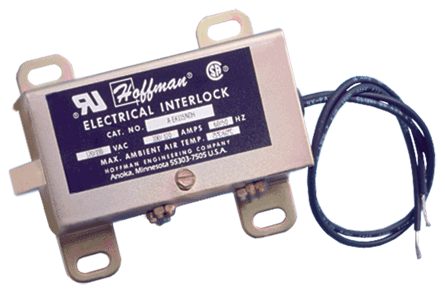

Hoffman PEK115NDH 0.1 Amp 120 Volt Steel Electrical? Interlock
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$355.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PEK115NDH
North Coast Part # 600449

Features

  • Solenoids are rated for continuous duty and will stand up under heavy industrial use
  • Packaged complete with a solenoid assembly, mounting bracket and instructions for field installation
  • Door handles and latching mechanisms are not included
  • Installation: Interlock mounts on bracket attached to door bar on inside of enclosure door.

Specifications

  • Material: Mild Steel
  • A @ 120 V/60 Hz Normal Inrush (ampere): .100/.63
  • A @ 110 V/50 Hz Normal Inrush (ampere): .120/.69
  • Modification Services: Yes
  • Color: Unpainted
  • Finish: Plated
  • Sub Brand: ProLine

Overview

UPC 78351022989
Item Long Description Provides positive internal safety lockout on electrical enclosures while the equipment is energized. Catalog numbers AE K115, AE K230 and AE K460 are used with standard HOFFMAN door latching mechanisms. When energized, these interlocks prevent the door handle from being turned to open the door. The interlock fits either clockwise or counterclockwise handles in the following enclosures: 1. All two-door Type 4 and 12 enclosures 2. All Type 4X with 3-point latch enclosures 3. Free-stand Type 12 enclosures 4. All single-door Type 12 enclosures with latch kits installed 12 enclosures 4. Larger sizes of junction boxes 5. Type 1 and large Type 1 enclosures The aforementioned interlocks also fit in most HOFFMAN custom enclosures and boxes which have doors or covers hinged similar to doors or covers on the preceding enclosures.
GTiN 00783510229894
Finish Plated
Type Doors and Door Accessories
Material Steel
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Standard CSA Certified,UL Component Recognized
Family Brand Name Hoffman
Sub Brand ProLine
