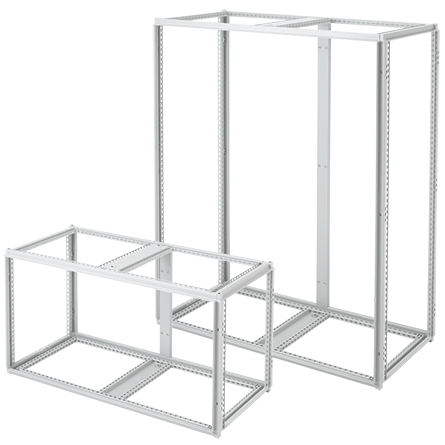

NVENT PF18124 Frame 1800x1200x400mm

Features

• ProLine™ offers the broadest range of standard sizes in the industry.
• Welded back centerpost
• No front centerpost for easy component installation
• Center top and bottom frame sections for internal component mounting
• Optional center uprights available to support mounting options
• Welded corners with steel corner blocks that add strength and rigidity
• 12 gauge, roll-formed frame sections for strength
• Flange on door and side openings deflects liquids away from the enclosure interior
• Rectangular frame holes are designed for metric cage nut fasteners
• Round frame holes allow numerous grounding locations using M5 thread-forming screws
• Access to both sides of frame mounting holes allows standard components to be easily installed
• Provisions for slide-in subpanel, rack mounting and accessory mounting
• Simple means for joining frames to create multiple-bay enclosures
• An open roll-formed profile design affords complete surface corrosion protection and assembly access
• Sealed mounting for all external accessories
• Finished with RAL 7035 texture

Notes

• 1 rack unit = 1.75 in. (44 mm)

Specifications

• Bulletin Number: P20
• Material: Steel
• Model Code: 95700
• Ship Wt. Std. Pkg. (lbs): 111.0
• Interchangeable: False
• Finish: Painted Steel
• Catalog Number: PF18124
• A in.: 70.87
• B in.: 47.24
• C in.: 15.75
• Maximum Subpanel Size in.: 66.34 x 44.49
• Maximum Rack Mounting Space: 38U x 2
• Nominal Frame Size A x B x C: 1800 x 1200 x 400
