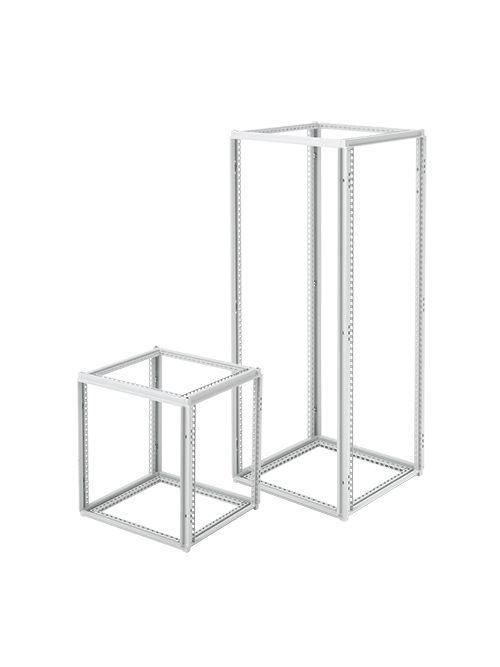

NVENT HOF PF2065HF EMI/RFI Frame 20
Product image thumbnail 0
Product image thumbnail 1
$1,417.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PF2065HF
North Coast Part # 1011212

Features

  • 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
  • Open roll-formed profile design affords complete surface corrosion protection and assembly access
  • Plated finish for corrosion resistance and effective cover grounding
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
  • Integral frame channels support the full weight of the mounting subpanel (sold separately)
  • Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
  • Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
  • Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately

Specifications

  • Material: Mild Steel
  • Nominal Frame Size (A x B x C): 2000 x 600 x 500 millimetre
  • Max Subpanel Size: 74.21 x 20.87 inch
  • Max Rack Mounting Space: 42U
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Unpainted
  • Finish: Plated
  • Thickness (T): 2.66 millimetre

Overview

UPC 78351010489
GTiN 00783510104894
Finish Plated
Width 23.62 in
Size 2000x600x500mm
Type Frames
Material Steel
Applications Controls and Drives; Power Distribution
Depth 19.69 in
Height 78.74 in
Family Brand Name Hoffman
Rack Unit 42
Sub Brand ProLine
Thickness 2.66 Millimetre mm
