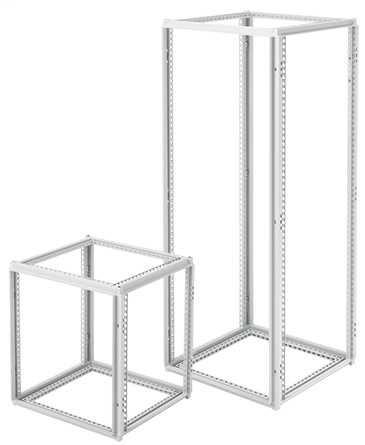

Hoffman PF22105 2200 x 1000 x 500 mm Enclosure Frame

Features

• Welded corners with steel corner blocks that add strength and rigidity
• 12 gauge, roll-formed frame sections for strength
• Flange on door and side openings deflect liquids away from the enclosure interior
• Rectangular frame holes are designed for metric cage nut fasteners
• Round frame holes allow numerous grounding locations using M5 thread-forming screws
• Access to both sides of frame mounting holes allows standard components to be easily installed
• Provisions for slide-in subpanel, rack mounting and accessory mounting
• Simple means for joining frames to create multiple-bay enclosures
• An open roll-formed profile design affords complete surface corrosion protection and assembly access
• Sealed mounting for all external accessories
• Finished with RAL 7035 textured gray polyester powder paint

Notes

• 1 rack unit = 1.75 in. (44 mm)

Specifications

• Bulletin Number: P20
• Material: Steel
• Model Code: 96060
• Ship Wt. Std. Pkg. (lbs): 103.0
• Interchangeable: False
• Finish: Painted Steel
• Catalog Number: PF22105
• A in.: 86.61
• B in.: 39.37
• C in.: 19.69
• Maximum Subpanel Size in.: 82.09 x 36.61
• Maximum Rack Mounting Space: 47U
• Nominal Frame Size A x B x C: 2200 x 1000 x 500
