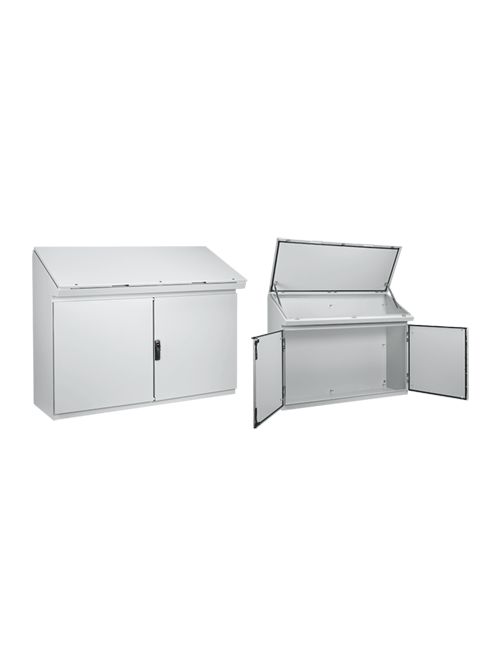

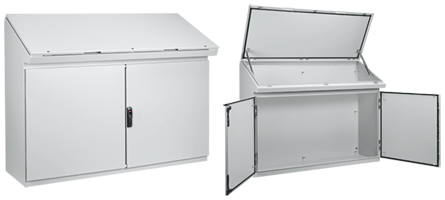

Hoffman PGLD12135DC 46.27 x 49.2 x 18.47 Inch Light Gray 14 Gauge Steel NEMA 12 Desk Console
$3,139.61/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PGLD12135DC
North Coast Part # 217669

Features

  • Caster Kit Industrial Corrosion Inhibitors Thermoplastic Data Pocket Compact Cooling Fans Grid Straps Flush Swing Handles Key Inserts 19-in. Rack Angles Touch-Up Paint
  • Finish is RAL 7035 textured light-gray polyester powder paint.
  • 14 gauge steel body
  • 14 and 16 gauge steel doors
  • 25-degree sloped top
  • Seams continuously welded and ground smooth
  • Top door prop allows for single-handed operation
  • Built-in top door handle
  • Quarter-turn latches hold top door securely closed
  • ProLine latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures
  • Internal rails on dual-access enclosures facilitate mounting of ProLine internal components
  • Full access provides maximum mounting space and easy access to interior components

Accessories

  • ProLine Accessories

Specifications

  • Bulletin Number: P11
  • Material: Steel
  • Model Code: 14385
  • Ship Wt. Std. Pkg. (lbs): 233.0
  • Interchangeable: False
  • Finish: Steel/LtGray
  • Catalog Number: PGLD12135DC
  • A in.: 46.27
  • B in.: 49.2
  • C in.: 18.47
  • Description: Single Access
  • D in.: 35.61
  • E in.: 24.26
  • F in.: 18.47
  • G in.: 48.98
  • H in.: 25.02
  • N in.: 22.41
  • P in.: 46.38
  • R in.: 29.09
  • Standards: UL 508A Listed; Type 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; File No. E61997 || NEMA/EEMAC Type 12 || IEC 60529, IP 55

Overview

UPC 78351014385
GTiN 00783510143855
Finish Powder Coated
Width 1300 mm
Size 1200x1300x500mm
Color RAL 7035 Light Gray
Type Double Door, Double-Bay, Desk
Material Steel
Applications The PROLINE Gold Series Double-Bay Desk Console provides an ideal surface for mounting HMI controls such as keyboards, switches, lights or dials, and it is ergonomically designed so operators can sit or stand while working. With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory.,
Depth 500 mm
Height 1200 mm
Standard Type 12,NEMA/EEMAC Type 12,UL 508A Listed,CUL Listed Per CSA C22.2 No 94,IP 55,File Number E61997,IEC 60529,File No. E61997
Family Brand Name Hoffman
Sub Brand ProLine
