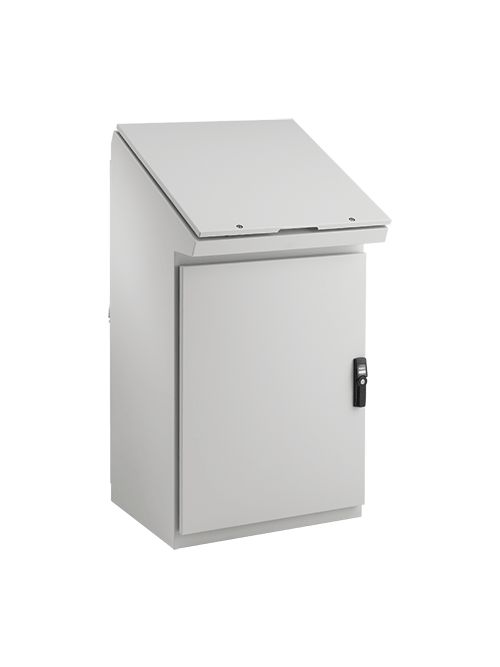

Hoffman PGLD1285DC 25 x 31.57 Inch 14 Gauge Steel 25 Degrees Sloped NEMA 12 Single Bay Dual Access Enclosure Desk Console
Product image thumbnail 0
Product image thumbnail 1
$2,738.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PGLD1285DC
North Coast Part # 673218

Features

  • 25-degree sloped top
  • Seams continuously welded and ground smooth
  • Top door prop allows for single-handed operation
  • Built-in top door handle
  • Quarter-turn latches hold top door securely closed
  • ProLine latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures
  • Internal rails on dual-access enclosures facilitate mounting of ProLine internal components
  • Full access provides maximum mounting space and easy access to interior components

Specifications

  • Height (H): 1,176 millimetre
  • Width (W): 808 millimetre
  • Depth (D): 469 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated

Related Products

Accessory

  • LED24V15

Overview

UPC 78351014388
GTiN 00783510143886
Finish Powder Coated
Width 24.28 in
Size 1200x800x500mm
Color Gray
Type Desk Consoles and Accessories
Material Steel
Applications Controls and Drives
Depth 18.47 in
Height 35.62 in
Standard 12,CUL Listed Per CSA C22.2 No 94,File No. E61997,File Number E61997,IEC 60529,IP55,IP66,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand ProLine
