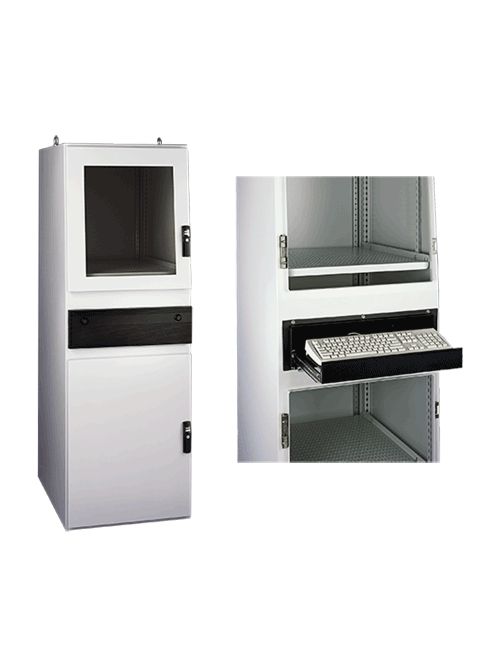

HOFF-E PGLD1468CWS Computer Worksta
$3,379.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PGLD1468CWS
North Coast Part # 760236

Features

  • 14 gauge steel body
  • 14 and 16 gauge steel doors and covers
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket on all doors and covers
  • Smoke gray 0.25-in.-thick polycarbonate window on upper front door
  • Quarter-turn latches on upper front door for 1400-mm high cabinets
  • ProLine latching system and keylocking swing door handles on upper front door for 1600- and 1800-mm high cabinets
  • Solid lower front and full rear doors with keylocking swing door handles
  • Internal rails facilitate mounting of ProLine internal components
  • Options include solid upper front door and solid front and rear covers with screw fasteners
  • Full rear opening provides maximum mounting space and easy access to interior components
  • Optional partial subpanel
  • Hinges on bottom for 1400-mm enclosures
  • Solid centerpost on front for 1200-mm enclosures

Accessories

  • ProLine Accessories

Specifications

  • Bulletin Number: P10
  • Material: Steel
  • Model Code: 10177
  • Ship Wt. Std. Pkg. (lbs): 267.0
  • Interchangeable: False
  • Finish: Steel/LtGray
  • Catalog Number: PGLD1468CWS
  • A in.: 55.12
  • B in.: 23.62
  • C in.: 31.5
  • K in.: 34.88
  • Description: Single Access
  • R in.: 50.71
  • S in.: 29.88
  • M in.: 12.56
  • N in.: 17.32
  • P in.: 18.54
  • O in.: 21.42
  • Nominal Size Height: 1400
  • Nominal Size Width: 600
  • Nominal Size Depth: 800
  • Top Door Opening Height in.: 16.00
  • Top Door Opening Width in.: 21.10
  • Bottom Door Opening Height in.: 27.91
  • Bottom Door Opening Width in.: 236
  • Rear Door Opening Height in.: 57.25
  • Rear Door Opening Width in.: 21.10
  • Standards: UL 508A Listed; Type 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || IEC 60529, IP55

Overview

UPC 78351010177
GTiN 7.8351E+11
Finish Steel/LtGray
Width 23.62 in
Size 1400x600x800mm
Color Gray
Type Gold Series Enclosure Systems
Material Steel
Applications Controls and Drives
Depth 31.5 in
Height 55.12 in
Standard NEMA/EEMAC Type 12,UL 508A Listed,CUL Listed Per CSA C22.2 No 94,IP55,File No. E61997,IEC 60529,Type 12,File Number E61997
Family Brand Name Hoffman
Sub Brand ProLine
