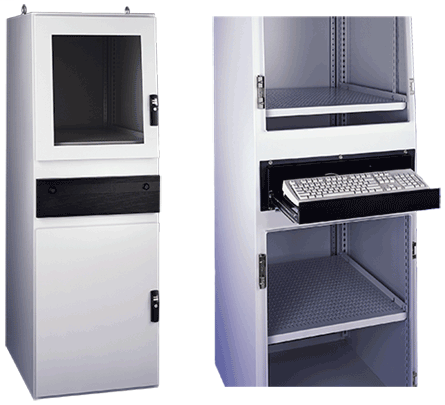

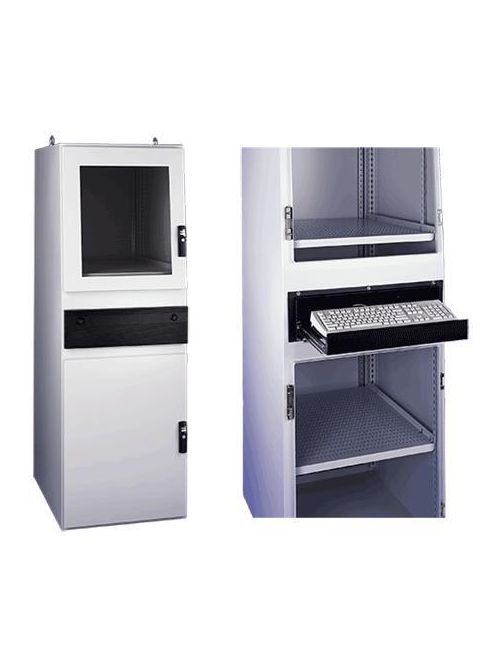

Hoffman PGLD1486CWS 60.08 x 31.81 x 21.34 Inch Light Gray 14 Gauge Steel NEMA 12 Computer Workstation Enclosure
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PGLD1486CWS
North Coast Part # 1162722


  • 14 gauge steel body
  • 14 and 16 gauge steel doors and covers
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket on all doors and covers
  • Smoke gray 0.25-in.-thick polycarbonate window on upper front door
  • Quarter-turn latches on upper front door for 1400-mm high cabinets
  • ProLine latching system and keylocking swing door handles on upper front door for 1600- and 1800-mm high cabinets
  • Solid lower front and full rear doors with keylocking swing door handles
  • Internal rails facilitate mounting of ProLine internal components
  • Options include solid upper front door and solid front and rear covers with screw fasteners
  • Full rear opening provides maximum mounting space and easy access to interior components
  • Optional partial subpanel
  • Hinges on bottom for 1400-mm enclosures
  • Solid centerpost on front for 1200-mm enclosures


  • ProLine Accessories


  • Bulletin Number: P10
  • Material: Steel
  • Model Code: 10996
  • Ship Wt. Std. Pkg. (lbs): 278.0
  • Interchangeable: False
  • Finish: Steel/LtGray
  • Catalog Number: PGLD1486CWS
  • A in.: 55.12
  • B in.: 31.5
  • C in.: 23.62
  • K in.: 34.88
  • Description: Single Access
  • R in.: 50.71
  • S in.: 29.88
  • M in.: 12.56
  • N in.: 25.20
  • P in.: 18.54
  • O in.: 28.15
  • Nominal Size Height: 1400
  • Nominal Size Width: 800
  • Nominal Size Depth: 600
  • Top Door Opening Height in.: 16.00
  • Top Door Opening Width in.: 28.98
  • Bottom Door Opening Height in.: 27.91
  • Bottom Door Opening Width in.: 28.98
  • Rear Door Opening Height in.: 57.25
  • Rear Door Opening Width in.: 28.98
  • Standards: UL 508A Listed; Type 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || IEC 60529, IP55


UPC 78351010996
GTiN 7.8351E+11
Finish Steel/LtGray
Width 31.5 in
Size 1400x800x600mm
Color Gray
Type Gold Series Enclosure Systems
Material Steel
Applications Controls and Drives
Depth 23.62 in
Height 55.12 in
Standard File Number E61997,File No. E61997,IEC 60529,IP55,CUL Listed Per CSA C22.2 No 94,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand ProLine
