NVENT HOF PGP65 Gland Plate, 600x50
Product image thumbnail 0
Product image thumbnail 1
$137.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PGP65
North Coast Part # 1013251

Features

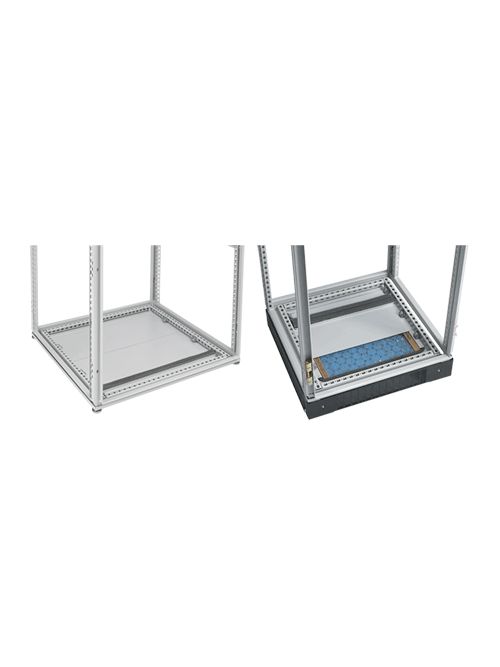

  • Solid Gland Plate and EMC Gland Plate are accessories to 100- mm Solid Base, 100-mm/200-mm Plinth Base, Mobile Base and Transportation Base. These gland plates can be used without a base if casters, levelers or frame feet are installed.
  • Solid Gland Plate: the Solid Gland Plate can be used with all ProLine subpanels or rack angles. The gland plate consists of a base mounting surface and two adjustable foam-gasketed plates that permit cable entry. The plate can be rotated 180 degrees for front or rear cable entry.
  • EMC Gland Plate: This gland plate can be used with subpanels or rack angles. Gland plate consists of a base mounting surface and two adjustable gland plates (both have a conductive coating) with conductive fabric-over-foam gasket for cable entry.
  • Filtered (Vented) Gland Plate: Filtered Gland Plate is used only in conjunction with Vented Plinth Base Covers. The plate can be used with all ProLine subpanels or rack angles. It consists of a mounting base, three adjustable plates for cable entry, a filter and filter retaining rails. Manufactured from 16 gauge steel and finished with RAL 7035 textured light-gray polyester powder paint. Replacement filters available. EMC Gland Plate maintains a Type 1 rating.
  • All hardware included

Specifications

  • Material: Mild Steel
  • Type: Solid
  • Fits Frame Width: 600 millimetre
  • Fits Frame Depth: 500 millimetre
  • Modification Services: Yes
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351029779
GTiN 00783510297794
Finish Powder Coated
Width 15.75 in
Size fits 600x400mm
Color Gray
Type Bases and Base Accessories
Material Steel
Applications Controls and Drives; Power Distribution
Height 23.62 in
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 1.9 Millimetre mm
