NVENT HOF PGP89 Gland Plate, 800x90
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$180.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PGP89
North Coast Part # 761240

Features

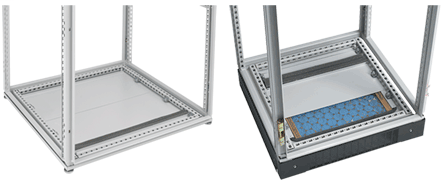

  • Solid Gland Plate and EMC Gland Plate are accessories to 100- mm Solid Base, 100-mm/200-mm Plinth Base, Mobile Base and Transportation Base. These gland plates can be used without a base if casters, levelers or frame feet are installed.
  • Solid Gland Plate: the Solid Gland Plate can be used with all ProLine subpanels or rack angles. The gland plate consists of a base mounting surface and two adjustable foam-gasketed plates that permit cable entry. The plate can be rotated 180 degrees for front or rear cable entry.
  • EMC Gland Plate: This gland plate can be used with subpanels or rack angles. Gland plate consists of a base mounting surface and two adjustable gland plates (both have a conductive coating) with conductive fabric-over-foam gasket for cable entry.
  • Filtered (Vented) Gland Plate: Filtered Gland Plate is used only in conjunction with Vented Plinth Base Covers. The plate can be used with all ProLine subpanels or rack angles. It consists of a mounting base, three adjustable plates for cable entry, a filter and filter retaining rails. Manufactured from 16 gauge steel and finished with RAL 7035 textured light-gray polyester powder paint. Replacement filters available. EMC Gland Plate maintains a Type 1 rating.
  • All hardware included

Specifications

  • Material: Mild Steel
  • Type: Solid
  • Fits Frame Width (millimetre): 800
  • Fits Frame Depth (millimetre): 900
  • Modification Services: Yes
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: ProLine
  • Size: fits 800x900mm

Overview

UPC 78351029879
Item Long Description Adjustable Gland Plates are used to seal the bottom of the ProLine frame. Solid, vented and shielded Gland Plates are available. Solid and filtered gland plates include covers that are gasketed to maintain Type 12 enclosure requirements. All installation hardware is included. Solid Gland Plate and EMC Gland Plate are accessories to 100-mm Solid Base, 100-mm/200-mm Plinth Base, Mobile Base and Transportation Base. These gland plates can be used without a base if casters, levelers or frame feet are installed. EMC Gland Plate maintains a Type 1 rating.
GTiN 00783510298791
Finish Powder Coated
Width 35.43 in
Size fits 800x900mm
Color Gray
Type Bases and Base Accessories
Material Steel
Applications Controls and Drives; Power Distribution
Height 31.5 in
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 1.9 mm
