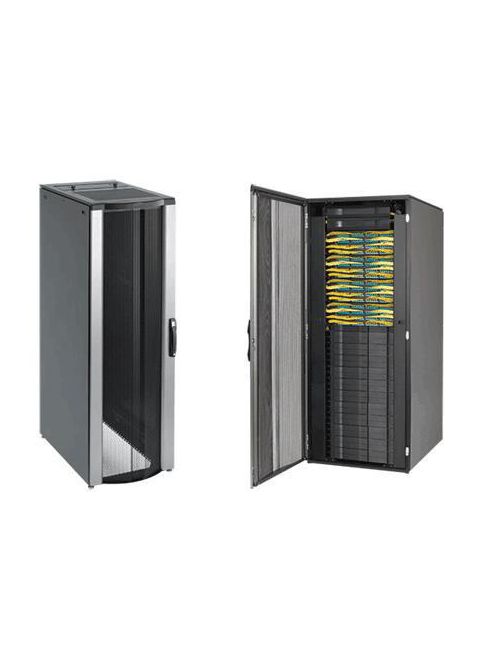

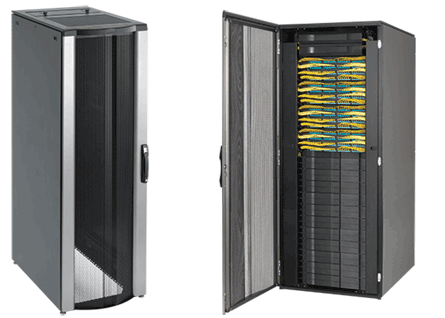

Hoffman PNC20710B 1991 x 708 x 999 mm Black Network Communication Cabinet
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PNC20710B
North Coast Part # 1167410


  • 16 or 14 gauge steel doors, sides and cover
  • Welded 12 gauge steel frame
  • Rack angles have tapped holes with EIA 310-D spacing
  • Open bottom with integral bolt-down brackets
  • Rigid front door made of aluminum extrusions and formed perforated steel offers highly attractive appearance and durability
  • Fully perforated top, front door and rear doors allow maximum air movement around cables, patch panels and other network equipment; conforms to server manufacturer open space requirements
  • Includes front cable manager with covers and rear open cable managers to support and route cable. See Cable/Power Management for cable manager specifications.
  • Cable managers included with 700-mm wide cabinet: Front - PVF207; Rear - PRBTD205
  • Cable managers included with 800-mm wide cabinet: Front - PVF208; Rear - PRBTD2010
  • Models without sides fit together quickly for easy installation in ganged applications; can be ganged with server cabinets or with additional Hoffman patch cabinets
  • Three-point locking pushbutton swing handle on front door provides easy but controlled access. Two keys included.
  • Rear doors are split for easy access and include 3-point, low-profile, locking swing handle
  • Two sets of tapped 19-in. rack angles support both front and rear of equipment
  • Rack angles are infinitely adjustable from front to rear for positioning flexibility
  • Rack angles are infinitely adjustable from front to rear for positioning flexibility
  • Twenty 10-32 screws are included


  • Bulletin Number: DPVD
  • Material: Steel
  • Model Code: 15614
  • Ship Wt. Std. Pkg. (lbs): 320.0
  • Interchangeable: False
  • Catalog Number: PNC20710B
  • A in.: 78.37
  • B in.: 27.85
  • C in.: 39.34
  • Rack Units: 42
  • Sides: With sides
  • Additional Tapped Hole Rack Angle: PRA1920TPL1
  • Additional Square Hole Rack Angle: PRA1920THL1


UPC 78351015614
GTiN 00783510156145
Finish Black
Width 27.85 in
Color Black
Type PROLINE CONNECTEK Communications (Patch) Cabinet
Material Steel
Applications The PROLINE CONNECTEK Network Communication/Patch Cabinets feature two vertical cable managers in the front of the cabinet and two rear cable managers for maximum cable routing and support. Cabinets are available in two widths to accommodate high-density cables, patch cords and networking equipment.
Depth 39.34 in
Height 78.37 in
Family Brand Name Hoffman
Rack Unit 42
Sub Brand Proline
