Hoffman PPB2106 200 x 1000 x 600 mm Black Textured Polyester Powder Painted Plinth? Base?
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$644.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PPB2106
North Coast Part # 606658

Features

  • Consists of eight corner supports connected to four access panels
  • Order a gland plate system to provide Type 12 protection
  • Includes all mounting hardware

Specifications

  • Material: Mild Steel
  • Fits Frame (B x C) (millimetre): 1000 x 600
  • Modification Services: Yes
  • Color: Jet Black
  • Color Code: RAL 9005
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Sub Brand: ProLine
  • Size: fits 1000x600mm

Overview

UPC 78351097630

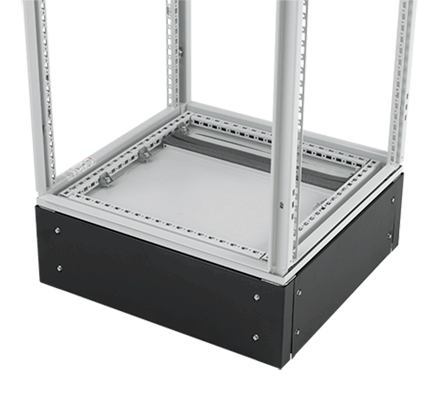

Item Long Description Plinth Bases install under an enclosure to provide space for cables to enter from below. A Plinth Base consists of eight corner supports connected to four access panels. The corner supports are cast aluminum. The access panels attach to the corner supports with screws. Plinth Bases include all necessary mounting hardware. Order a gland plate system to provide Type 12 protection when using a plinth base.
GTiN 00783510976309
Finish Powder Coated
Width 39.37 in
Size fits 1000x600mm
Color Black
Type Bases and Base Accessories
Material Steel
Applications Controls and Drives; Power Distribution
Depth 23.62 in
Height 22.01 in
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 1.52 mm
