NVENT HOF PPBCV21000 Vented Plinth
Product image thumbnail 0
Product image thumbnail 1
$171.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PPBCV21000
North Coast Part # 606689

Features

  • Hardware included
  • Standard plinth base must be ordered in combination with Vented Plinth Base covers to form a Vented Plinth Base
  • If a gland plate is needed, opt for a vented gland plate for optimum air flow

Specifications

  • Material: Mild Steel
  • Fits Frame Type: Single-Bay
  • Fits Frame Width (B) (millimetre): 1,000
  • Modification Services: Yes
  • Color: Jet Black
  • Color Code: RAL 9005
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Sub Brand: ProLine
  • Size: fits 200x1000mm

Overview

UPC 78351013332

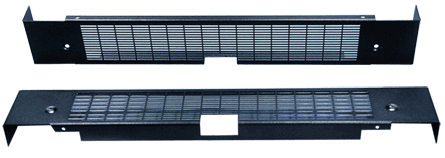

Item Long Description Vented Plinth Base Covers install in the front and rear openings of a standard plinth base in place of Solid Covers. Vented covers allow air to circulate into the enclosure. Vented Plinth Base Covers are available in 100-mm and 200-mm heights. These covers include all necessary mounting hardware. A standard plinth base must be ordered in combination with Vented Plinth Base covers to form a Vented Plinth Base. If using a gland plate with the Vented Plinth Base, order a vented gland plate to provide air circulation through the bottom of the enclosure.
GTiN 00783510133320
Finish Powder Coated
Width 39.37 in
Size fits 200x1000mm
Color Black
Type Bases and Base Accessories
Material Steel
Applications Controls and Drives
Height 7.87 in
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 1.52 mm
