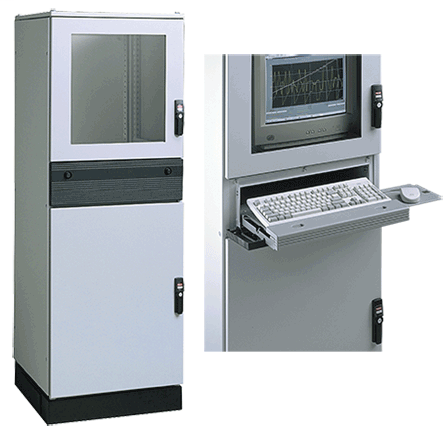

Hoffman PPC2088 PROLINE-PC 2000 x 800 x 800 mm Enclosure

Features

• The frame is enclosed with solid sides, a solid top and a 100-mm solid base.
• Three doors, two in front and one in back, provide convenient access
• The sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
• The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
• The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
• The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
• The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments. See the attached drawing for dimensions and the Accessory Front Options section for available acces
• The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock. This compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems.

Notes

• 100-mm solid base is included in the A dimension.

Specifications

• Bulletin Number: 98880
• Material: 454.0
• Model Code: False
• Ship Wt. Std. Pkg. (lbs): Painted Steel
• Catalog Number: PPC2088
• A in.: 78.74
• B in.: 31.5
• C in.: 31.5
• R in.: 61.54
• M in.: 13.50
• N in.: 22.28
• P in.: 38.82
• Top Door Opening Height in.: 37.72
• Top Door Opening Width in.: 28.98
• Bottom Door Opening Height in.: 29.09
• Standards: UL 508A Listed; Type 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File Number E61997 || NEMA/EEMAC Type 12 || CSA File Number 42186: Type 12 || VDE IP55 || IEC 60529, IP55
