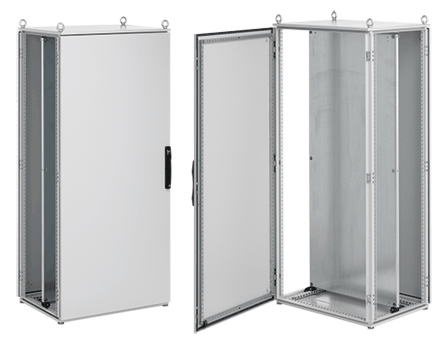

NVENT HOF PPOD1886 PP OD 1800X800x
$2,687.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PPOD1886
North Coast Part # 1005230

Features

  • Frames are a roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
  • Standard door bars increase strength and rigidity and allow for an extra mounting options
  • Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
  • Gasket and latching system together ensure a solid seal with low closure force
  • Reversible door, left hinged as a default, with 130-degree swing
  • Galvanized mounting plates
  • Capped ground studs on door, rear and top panel.
  • Integral frame channels support the full weight of the mounting plates
  • Frame thickness 12 gauge/ 2,5 mm carbon steel powder painted
  • Door thickness 14 gauge/1,5 - 2,0 mm, carbon steel powder painted – for details please check reference tables
  • Mounting panel 2,5 mm on single bay, 3,0 mm on double bay, galvanized steel
  • Rear panel and solid top 1,5 mm, carbon steel powder painted

Specifications

  • Bulletin Number: P21
  • Material: Steel
  • Model Code: 19791
  • Ship Wt. Std. Pkg. (lbs): 341.0
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: PPOD1886
  • A in.: 70.87
  • B in.: 31.5
  • C in.: 23.62
  • Type: Overlapping Double Doors
  • Standards: UL 508A Listed; Type 12; File Number E61997 || NEMA/EEMAC Type 12 || CSA File Number 42186: Type 12 || VDE IP55 || IEC 60529, IP55

Overview

UPC 78351019791
GTiN 00783510197919
Finish RAL 7035
Width 31.5 in
Size 1800x800x600mm
Color Gray
Type PROLINE Industrial Packages,Type 12
Material Steel
Applications Controls and Drives; Power Distribution
Depth 23.62 in
Height 70.87 in
Standard CSA File Number 42186: Type 12,File Number E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed,VDE IP55
Family Brand Name Hoffman
Sub Brand ProLine
