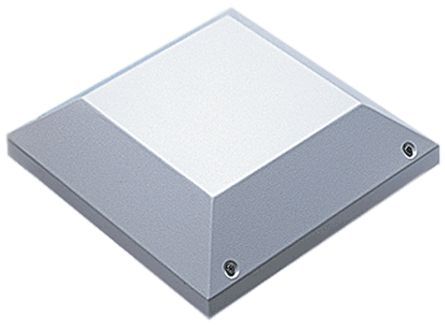

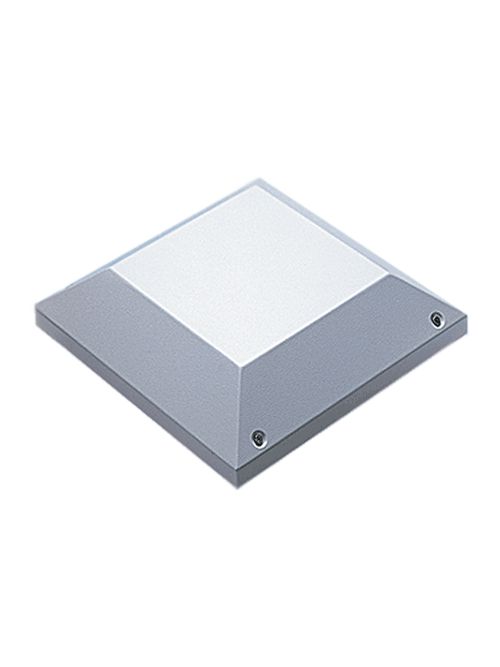

HOFF-E PPTHP1C Pagoda Ex HP 115v F
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PPTHP1C
North Coast Part # 342562


  • Integral centrifugal blower mounted in a protective housing
  • Can be installed on any ProLine or ProLine G2 solid top
  • Drip-protected, raised cover is removable from the inside of the enclosure
  • Housing includes a drip-proof removable hood, wire mesh finger guard and perimeter gasket
  • Lead wire or power cord options
  • 115V or 230V versions
  • Rated UL Type 1; installing this component on an enclosure brings the enclosure rating to UL Type 1
  • Installation hardware is included


  • Bulletin Number: P20
  • Material: Steel
  • Model Code: 11096
  • Ship Wt. Std. Pkg. (lbs): 23.0
  • Interchangeable: False
  • Catalog Number: PPTHP1C
  • Description: Power cord
  • Use With: Top with high-performance pagoda vent cutout
  • Voltage: 115
  • Full Load Amps: 1.7


UPC 78351011096
GTiN 00783510110963
Finish Lt Gray
Voltage 115 Volt
Type High-Performance Pagoda Exhaust Vent
Material Steel
Applications Vents fit on standard PROLINE top with vent cutout or can be field-installed on any PROLINE solid top. The Pagoda Vent features an integral centrifugal blower mounted in a housing that includes a drip-proof removable hood, wire mesh finger guard, perimeter gasket and terminal block. Electromagnetic-compatible (EMC) Pagoda Vents include a conductive screen, conductive gasket, line filter and 6-ft. power cord with stripped leads. Pagoda Vent housing and hood are rugged 16 gauge steel finished with RAL 7035 textured light-gray polyester powder paint. EMC vents are finished with paint over plated surfaces. Installation hardware is included.
Family Brand Name Hoffman
Amperage 1.7 Amp
Motor Type AC Motor
Sub Brand Hoffman
