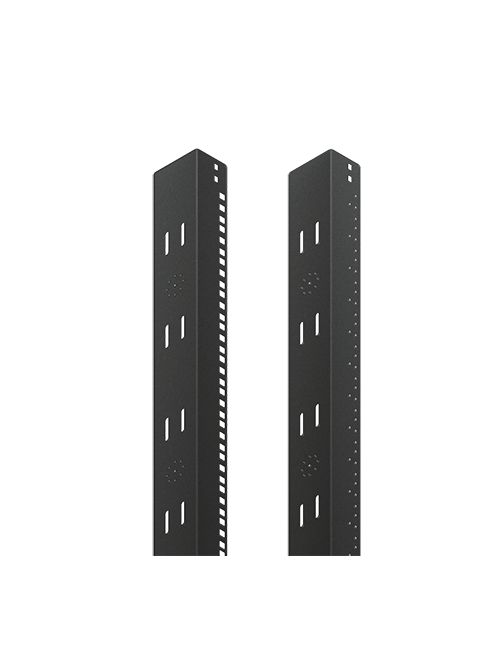

Hoffman PRA1920TPL1 Proline 19 Inch 2000 mm L Shaped Rack Angle
$283.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PRA1920TPL1
North Coast Part # 675212

Features

  • Made of 14 gauge steel with square holes or 12 gauge steel with 10-32 tapped holes. Provides 19-in. rack spacing when mounted in 600-mm wide frames, and 23-in. rack spacing when mounted in 700-mm wide frames. Use with frame reducing brackets to provide 19-in. or 23-in. spacing in 700-mm or 800-mm wide frames. Sizes available for multi-compartment colocation applications. Finish is black RAL 9005 polyester powder paint with flat finish. Furnished in pairs. The standard rack angle position is 44 mm behind the door opening.
  • Rack angles can be moved forward if desired. Deeper positions require the use of grid straps or mounting channels. For joining cabinets with rack angles in the full forward position, use Joining Kit PJ2FF. Shelves, drawer, guides and pull-out shelves require two sets of rack angles or frame accessory brackets installed in the frame.
  • For 700- and 800-mm wide cabinets, reducer or cable manager must be ordered.

Specifications

  • Bulletin Number: DPC
  • Material: Steel
  • Model Code: 11241
  • Ship Wt. Std. Pkg. (lbs): 21.0
  • Interchangeable: False
  • Finish: Steel Black
  • Catalog Number: PRA1920TPL1
  • Hole Type: Tapped
  • Rack Units: 42
  • Length in.: 74.47
  • Use With: ProLineā„¢ DataCom Packages
  • Description in.: 19

Overview

UPC 78351011241
GTiN 00783510112417
Length 74.47 in
Finish Steel Black
Color Black
Type 19-in. and 23-in. Rack Angles
Material Steel
Applications Made of 14 gauge steel with square holes or 12 gauge steel with 10-32 tapped holes. Provides 19-in. rack spacing when mounted in 600-mm wide frames, and 23-in. rack spacing when mounted in 700-mm wide frames. Use with frame reducing brackets to provide 19-in. or 23-in. spacing in 700-mm or 800-mm wide frames. Sizes available for multi-compartment colocation applications. Finish is black RAL 9005 polyester powder paint with flat finish. Furnished in pairs. The standard rack angle position is 44 mm behind the door opening.Rack angles can be moved forward if desired. Deeper positions require the use of grid straps or mounting channels. For joining cabinets with rack angles in the full forward position, use Joining Kit PJ2FF. Shelves, drawer, guides and pull-out shelves require two sets of rack angles or frame accessory brackets installed in the frame.For 700- and 80
Family Brand Name Hoffman
Rack Unit 42
Sub Brand Proline
