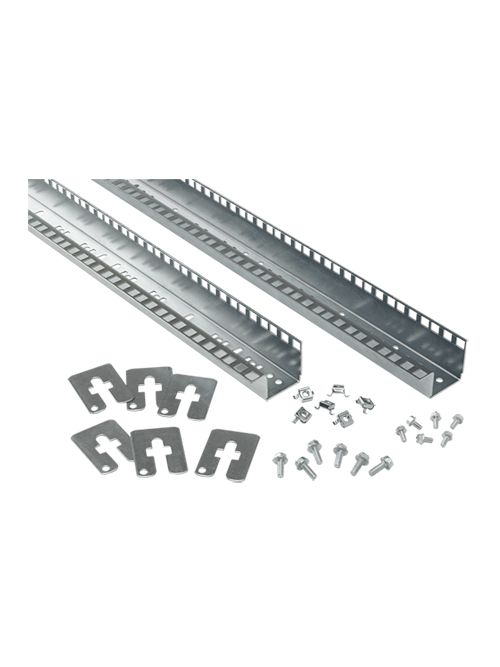

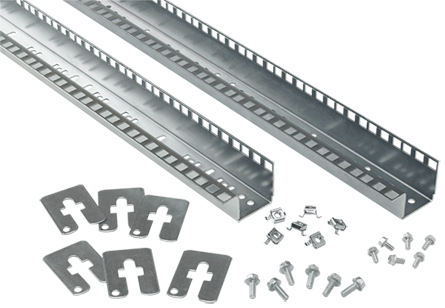

Hoffman PRA1922TH 2200 mm 14 Gauge Steel 47-Unit Square Enclosure Rack Angle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$266.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PRA1922TH
North Coast Part # 682618

Features

  • Furnished in pairs
  • Tapped-Hole Rack Angles are constructed from 12 gauge conductive steel, while Square-Hole Rack Angles are 14 gauge conductive steel; U-shaped, channel construction
  • Tapped-Hole Rack Angles have 10-32 threaded holes; Square-Hole Rack Angles are designed to accept metric or English cage nuts. Comply with ANSI/EIA RS-310-D rack mounting standards.
  • Rack Angles fit directly into 600-mm wide frames; other widths require Frame Reducing Brackets or Adjustable Rack-Mounting Rails (sold separately).

Specifications

  • Material: Mild Steel
  • Rack Units: 47
  • Hole Type: Square
  • Fits Frame (millimetre): 2200 mm
  • Modification Services: Yes
  • Color: Unpainted
  • Finish: Plated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: ProLine
  • Size: fits 2200mm

Overview

UPC 78351064930
Item Long Description 19-in. U-Shaped Rack Angles are available in square-hole and tapped-hole designs. Tapped Rack Angles have 10-32 tapped holes. Square-Hole Rack Angles are designed to accept metric or English cage nuts. 19-in. Rack Angles are fixed directly into a 600-mm wide enclosure frame. To mount 19-in. Rack Angles in 700- or 800-mm wide frames, use frame reducing brackets.
GTiN 00783510649302
Size fits 2200mm
Type Rack and Grid/Rail System
Material Steel
Applications Controls and Drives
Family Brand Name Hoffman
Rack Unit 47
Sub Brand ProLine
Finish Plated
Thickness 1.9 mm
