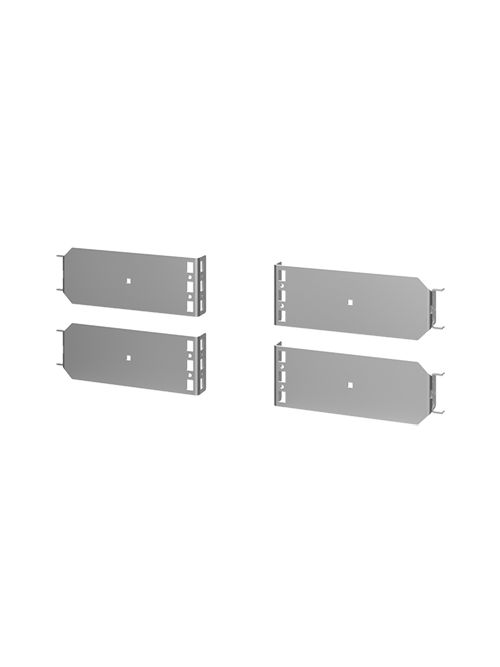

Hoffman PRB200 200 mm 14? Gauge Plated Steel Frame Reducing? Bracket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$83.40/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PRB200
North Coast Part # 600156

Features

  • Furnished in set of four; mounting hardware included
  • 14 gauge (1.75 mm) conductive steel
  • Mount directly to 700- or 800-mm wide ProLine frames or to grid straps. Converts wider frames to 600-mm wide, allowing 19-in. rack angles to fit, or to 700-mm wide, allowing 23-in. rack angles to fit.
  • Can also be used to left- or right-justify the rack-mounted equipment through the use of a single bracket or combination of brackets.

Specifications

  • Material: Mild Steel
  • Reduces Frame Width (millimetre): 200
  • Converts Frame Width: From 1000 to 600 From 1000 to 800 From 800 to 600 mm
  • Modification Services: Yes
  • Color: Unpainted
  • Finish: Plated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: ProLine
  • Size: 200mm + 200mm

Overview

GTiN 00783510795702
Size 200mm + 200mm
Type Rack and Grid/Rail System
Material Steel
Applications Controls and Drives
Family Brand Name Hoffman
Sub Brand ProLine
Product UPC 78351079570
Finish Plated
Thickness 1.9 mm
