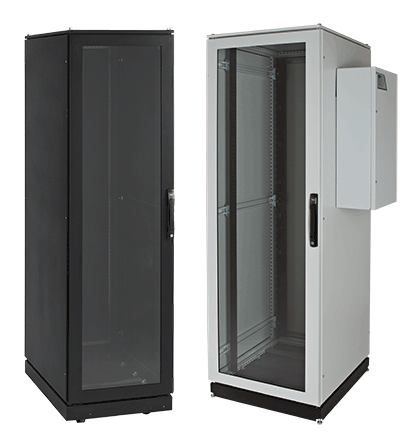

Hoffman PSC20610BAC 2085 x 608 x 999 mm Black 14 Gauge Steel 42-Unit Square Cabinet
$4,559.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PSC20610BAC
North Coast Part # 820514

Features

  • Welded 12 gauge steel frame with integral struts
  • Front window door made of 16 or 14 gauge steel with safety glass window
  • Solid 16 or 14 gauge steel back door
  • Standard package has solid 16 or 14 gauge steel sides
  • AC package has cutout for easy in-the-field installation of any CR29 Series Air Conditioner (shipped separately)
  • Models available with EIA Universal standard 3/8-in. square or 10-32 tapped holes
  • Mobile base includes casters, levelers and gland plate
  • Gland plate allows easy routing of cable
  • Three-point locking handles on all doors provide easy but controlled access; two keys included
  • Fully welded frame safely supports sensitive equipment
  • Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
  • Two sets of 19-in. rack angles support both front and rear of equipment
  • Rack angles are infinitely adjustable from front to rear for positioning flexibility
  • Mobile base provides easy placement of cabinet
  • Levelers and anti-tip bracket secure cabinet to the floor

Accessories

  • See the Package Components table and, for AC-Ready Cabinet, CR29 air conditioner specifications in the Thermal chapter. Air conditioner will be shipped separately. It cannot be factory installed.

Specifications

  • Bulletin Number: Steel
  • Material: 15338
  • Model Code: 531.0
  • Ship Wt. Std. Pkg. (lbs): False
  • Catalog Number: PSC20610BAC
  • A in.: 82.1
  • B in.: 23.94
  • C in.: 39.34
  • Hole Type: Square
  • Rack Units: 42
  • Rack Angle: PRA1920THL1
  • Cabinet Package Type: Server, AC Ready
  • Standards: EIA RS-310-D || UL 508A Listed; Type 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File Number E61997 || NEMA/EEMAC, Type 12

Categories

Overview

UPC 78351015338
GTiN 7.8351E+11
Finish Steel/Black
Width 23.94 in
Color Black
Type Free-Stand Networking Cabinets
Material 15338
Applications Networking, Storage and Data Center
Depth 39.34 in
Height 82.1 in
Standard CUL Listed Per CSA C22.2 No 94,EIA RS-310-D,File Number E61997,NEMA/EEMAC,Type 12,UL 508A Listed
Family Brand Name Hoffman
Rack Unit 42
Sub Brand ProLine
