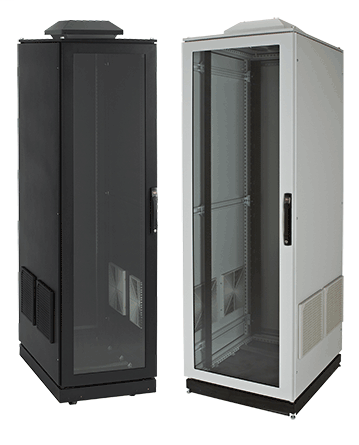

Hoffman PSC20610BFP 2000 x 600 x 1000 mm Black Proline Voice/Data and Server Cabinet with Fan Package
$6,173.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PSC20610BFP
North Coast Part # 669340

Features

  • Welded 12 gauge steel frame with integral struts
  • Front window door made of 16 or 14 gauge steel with safety glass window
  • Solid 16 or 14 gauge steel back door
  • Solid 16 or 14 gauge steel sides with factory-installed intake filters
  • Pagoda top has 115 V fan with 6 ft. (1.8 m) cord. Fan capacity is 600 CFM (16.99 cubic meters/minute).
  • Models available with EIA Universal standard 3/8-in. square or 10-32 tapped holes
  • Mobile base includes casters, levelers and gland plate
  • Gland plate allows easy routing of cable
  • Three-point locking handles on all doors provide easy but controlled access; two keys included
  • Fully welded frame safely supports sensitive equipment
  • Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
  • Two sets of 19-in. rack angles support both front and rear of equipment
  • Rack angles are infinitely adjustable from front to rear for positioning flexibility
  • Mobile base provides easy placement of cabinet
  • Levelers and anti-tip bracket secure cabinet to the floor

Specifications

  • Bulletin Number: Steel
  • Material: 15337
  • Model Code: 300.0
  • Ship Wt. Std. Pkg. (lbs): False
  • Catalog Number: PSC20610BFP
  • A in.: 86.74
  • B in.: 23.94
  • C in.: 39.34
  • Hole Type: Square
  • Rack Units: 42
  • Rack Angle: PRA1920THL1
  • Cabinet Type: Server
  • Standards: EIA RS-310-D || UL508A Listed; Type 1; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 1; File No. E61997

Categories

Overview

UPC 78351015337
GTiN 7.8351E+11
Finish Steel/Black
Width 23.94 in
Color Black
Type Free-Stand Networking Cabinets
Material 15337
Applications Networking, Storage and Data Center
Depth 39.34 in
Height 86.74 in
Standard CUL Listed Per CSA C22.2 No 94,EIA RS-310-D,File No. E61997,Type 1,UL508A Listed
Family Brand Name Hoffman
Rack Unit 42
Sub Brand ProLine
