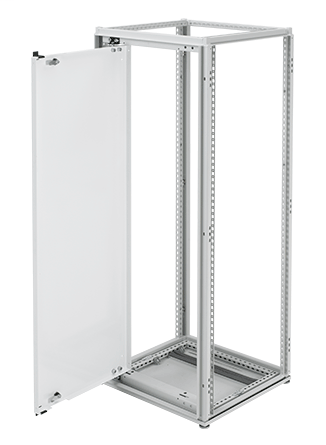

Hoffman PSP206 600 x 2000 mm Swing Enclosure Panel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$816.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PSP206
North Coast Part # 1346183

Features

  • Swing-Out Panels are available for 600-, 700- and 800-mm wide enclosures
  • Spring-loaded pivot post allows for easy installation
  • Hinge blocks are anodized black; supports and panel have a painted white finish
  • Quarter-turn latches are provided to secure the Swing-Out Panel in the closed position
  • Panels provide 170 degrees of rotation, with the capability to hinge from the right or left side.
  • All necessary mounting hardware included

Specifications

  • Material: Mild Steel
  • Fits Frame Width (millimetre): 600
  • Fits Frame (millimetre): 2000 or taller
  • Modification Services: Yes
  • Color: White
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Sub Brand: ProLine
  • Size: fits 2000+ x 600mm

Categories

Overview

UPC 78351091830
Item Long Description Swing-Out Panels allow a front-mounted panel to pivot out of an enclosure frame opening. This accessory includes a panel and all the necessary hardware. Panels provide 170 degrees of rotation, with the capability to hinge from the right or left side.
GTiN 00783510918309
Finish Powder Coated
Width 78.74 in
Size fits 2000+ x 600mm
Color White
Type Swing-Out Panel
Material Steel
Applications Controls and Drives; Power Distribution
Height 23.62 in
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 2.66 mm
