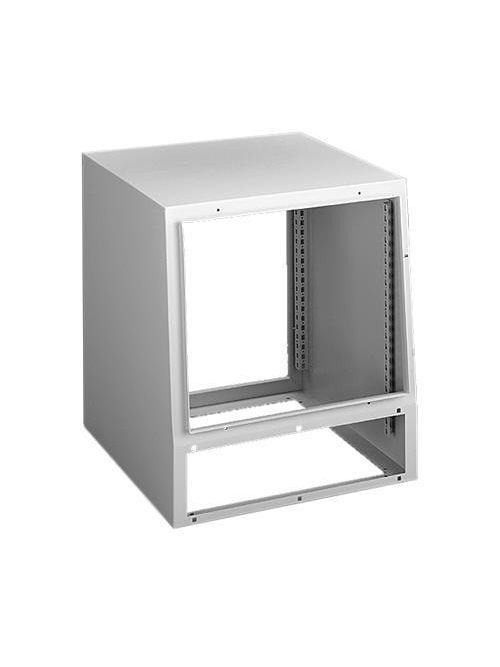

Hoffman PST5A86 Sloped Top Accessory Front
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,886.31/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PST5A86
North Coast Part # 600458

Features

  • Enclosure is available in two heights
  • The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
  • A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system

Specifications

  • Height (H) (inch): 19.69
  • Height (H) (millimetre): 500
  • Width (W) (inch): 31.5
  • Width (W) (millimetre): 800
  • Depth (D) (inch): 23.62
  • Depth (D) (millimetre): 600
  • Protection Rating: IP55
  • Material: Mild Steel
  • Nominal Dimensions (A x B x C) (millimetre): 500A x 800 x 600
  • Front Opening (E x G) (millimetre): 440 x 736
  • Front Opening (E x G) (inch): 17.31 x 28.98
  • Rear Opening (F x H) (millimetre): 611 x 736
  • Rear Opening (F x H) (inch): 24.04 x 28.98
  • Internal Mounting (J) (millimetre): 500
  • Internal Mounting (J) (inch): 19.69
  • Weight (pound): 64
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: ProLine
  • Size: 500x800x600mm

Overview

UPC 78351036519
Item Long Description A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure with Accessory Opening foundation is extremely adaptable for nearly any application. Upper front opening for door/cover options has a 5-degree slope. Lower section is suitable for keyboard or other front options. Rear opening(s) for door and cover options. The internal mounting hole pattern accommodates most ProLine internal accessories. Optional ProLine Frame Shelf or ProLine Grid System provides a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm ProLine frame.
GTiN 00783510365196
Finish Powder Coated
Width 31.5 in
Size 500x800x600mm
Color Gray
Type HMI Accessories
Material Steel
Applications Controls and Drives
Depth 600 mm
Height 19.69 in
Weight 64 lb
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 1.9 mm
