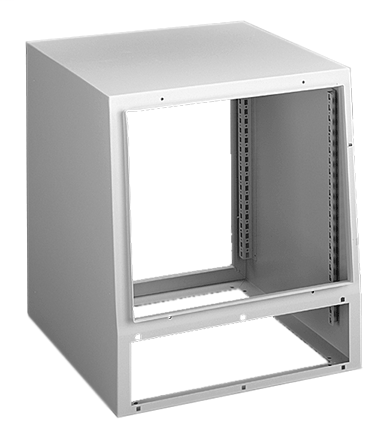

Hoffman PST7A126 Sloped Top Accessory Front
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PST7A126
North Coast Part # 552197


  • Enclosure is available in two heights
  • The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
  • A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system


  • Height (H) (inch): 27.56
  • Height (H) (millimetre): 700
  • Width (W) (inch): 47.24
  • Width (W) (millimetre): 1,200
  • Depth (D) (inch): 23.62
  • Depth (D) (millimetre): 600
  • Protection Rating: IP55
  • Material: Mild Steel
  • Nominal Dimensions (A x B x C) (millimetre): 700A x 1200 x 600
  • Front Opening (E x G) (millimetre): 641 x 1136
  • Front Opening (E x G) (inch): 25.22 x 44.73
  • Rear Opening (F x H) (millimetre): 811 x 536
  • Rear Opening (F x H) (inch): 31.91 x 21.11
  • Internal Mounting (J) (millimetre): 700
  • Internal Mounting (J) (inch): 27.56
  • Weight (pound): 111
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: ProLine
  • Size: 700x1200x600mm


UPC 78351036559
Item Long Description A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure with Accessory Opening foundation is extremely adaptable for nearly any application. Upper front opening for door/cover options has a 5-degree slope. Lower section is suitable for keyboard or other front options. Rear opening(s) for door and cover options. The internal mounting hole pattern accommodates most ProLine internal accessories. Optional ProLine Frame Shelf or ProLine Grid System provides a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm ProLine frame.
GTiN 00783510365592
Finish Powder Coated
Width 47.24 in
Size 700x1200x600mm
Color Gray
Type HMI Accessories
Material Steel
Applications Controls and Drives
Depth 600 mm
Height 27.56 in
Weight 111 lb
Family Brand Name Hoffman
Sub Brand ProLine
Thickness 1.9 mm
