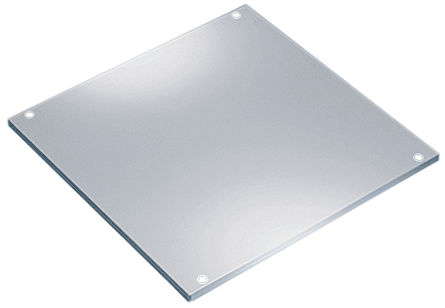

NVENT HOF PT86HF2 Medium EMI/RFI So
Product image thumbnail 0
Product image thumbnail 1
$450.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PT86HF2
North Coast Part # 601058

Features

  • Solid Tops are finished with paint over plated surfaces
  • Solid Tops are gasketed and include ground studs
  • Bolts are included to hold the top in place (lifting eyes can be used instead of bolts)

Specifications

  • Material: Mild Steel
  • Type: EMC
  • Fits Frame (B x C) (millimetre): 800 x 600
  • Frame Type: Single-Bay
  • Modification Services: Yes
  • IP Rating: IP55
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Galvanized
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Sub Brand: ProLine
  • Size: fits 800x600mm

Overview

UPC 78351011969
Item Long Description Solid Tops are used to close the top opening on an enclosure frame. EMC Solid Tops are finished with paint over plated surfaces. Solid Tops are gasketed and include ground studs. Bolts are included to hold the top in place (lifting eyes can be used instead of bolts).
GTiN 00783510119690
Finish Galvanized
Width 31.50 in
Size fits 800x600mm
Color Gray
Type Tops and Top Accessories
Material Steel
Applications Controls and Drives; Power Distribution
Depth 23.62 in
Height 23.58 in
Family Brand Name nVent HOFFMAN
Sub Brand ProLine
Thickness 1.52 mm
