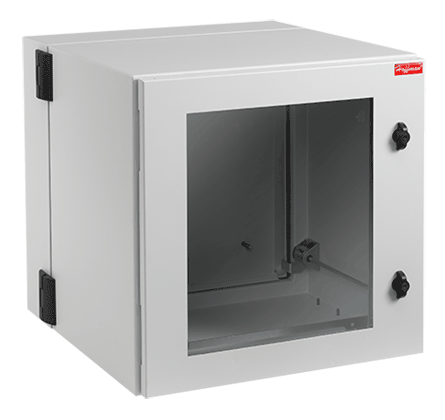

Hoffman PTHW162415G2 16 x 24 x 15 Inch Steel NEMA 4/12 Double Hinged Window Door Wall Mount Cabinet
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,409.63/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PTHW162415G2
North Coast Part # 1163443

Features

  • Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
  • Solid door provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet

Specifications

  • Height (H) (inch): 17.09
  • Height (H) (millimetre): 434
  • Width (W) (inch): 23.62
  • Width (W) (millimetre): 600
  • Depth (D) (inch): 14.96
  • Depth (D) (millimetre): 380
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Rack Units: 8
  • Optional Steel Panel: CP2014
  • Additional Rack Angles: PTRA16T or PTRA16S
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.9
  • Color: Light Gray
  • Color Code: RAL 7035
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.52
  • Finish: Powder Coated
  • Sub Brand: ProTek
  • Height: 17.09 in
  • Width: 23.62 in
  • Depth: 14.96 in

Related Products

Accessory

  • PTRA16T
  • CP2014
  • AS1032
  • P1032CN
  • CPMK24
  • ESH198
  • ELHP
  • EPL4
  • DL36
  • PTWK
  • PTWPSS

Overview

UPC 78351023634
Item Long Description ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-inch rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.
GTiN 00783510236342
Finish Powder Coated
Width 23.62 in
Color Gray
Type Rack and Cabinet Accessories
Material Painted Steel
Applications Controls and Drives; Datacom and Telecom Equipment; Networking, Storage and Data Center
Depth 380 mm
Height 17.09 in
Standard CUL Listed Per CSA C22.2 No. 94; File Number E619967,IEC 60529, IP66 Or IP55, IK 10,NEMA / EEMAC: Type 4, 4X Or 12,Solid Door, Stainless Steel: Type 4, 4X And 12,Solid Door: Type 4 And 12,UL 508A Listed; File Number E61997,Window Door: Type 12
Family Brand Name Hoffman
Rack Unit 8
Sub Brand ProTek
Body Thickness 1.9 mm
