NVENT HOF PTHW242428G2A PTK DH WD 2

Features

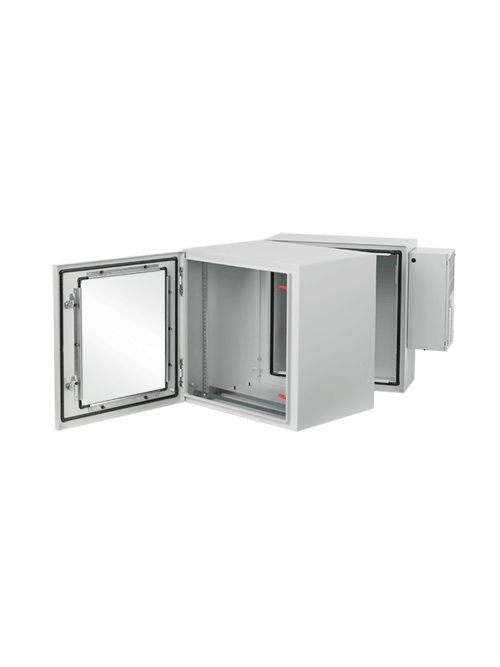

• Front and rear access to 19-in. rack equipment provided by three-part design: door, center section and wall section
• Solid door provides complete physical and visual protection
• Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
• All seams are fully welded and ground smooth
• Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
• Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
• Keylocking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
• Stainless steel cabinet is provided with a quarter-turn slotted latch
• One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
• On 28-in. (700 mm) wide enclosures, a 4-in. vertical cable manager with composite fingers is provided on hinge side of cabinet
• Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
• Doors made of 16 gauge; center and wall sections made of 14 gauge steel. Stainless steel enclosures made from Type 304 stainless steel
• Window made of .25-in. thick, scratch- and impact-resistant safety glass
• Rack angles made of plated 12 gauge steel
• M6 ground studs on door, center and wall sections are masked from paint
• Twenty 10-32 screws included with cabinet
• Foam-in-place gasket made of durable polyurethane

Accessories

• Locks and handles
• Panels (steel and wood)
• Grounding kits
• Power Distribution Units (PDUs)
• Rack angles

Specifications

• Bulletin Number: DWDH2
• Model Code: 23656
• Ship Wt. Std. Pkg. (lbs): 145.0
• Interchangeable: False
• Finish: RAL 7035
• Material: Painted steel
• Catalog Number: PTHW242428G2A
• A in.: 24.09
• B in.: 23.62
• C in.: 27.95
• Rack Units: 12
• F in.: 25.65
• S in.: 1.11
• Q in.: 12.38
• P in.: 18.25
• Optional Steel Panel: CP2020
• Optional Wood Panel: CP2020W
• Additional Rack Angles a: PTRA24T or PTRA24S
• Description: Solid Door AC
• Standards: UL 508A Listed; File Number E61997 || cUL Listed per CSA C22.2 No. 94; File Number E619967 || Solid Door: Type 4 and 12 || Window Door: Type 12 || Solid Door, Stainless Steel: Type 4, 4X and 12 || NEMA / EEMAC: Type 4, 4X or 12 || IEC 60529, IP66 or IP55, IK 10
