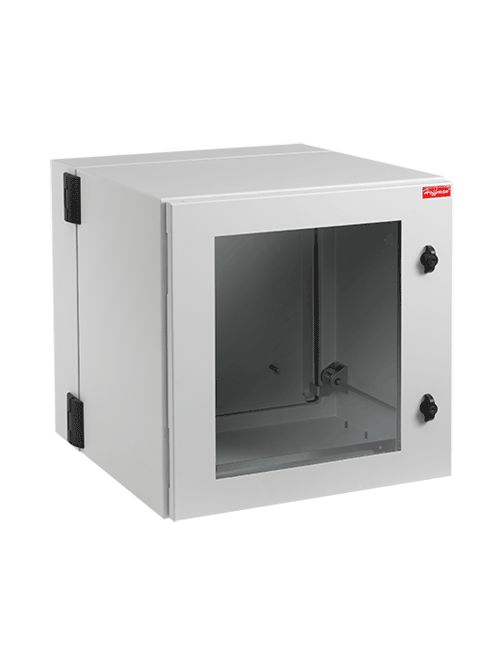

NVENT HOF PTHW242430G2 PTK DH WD 24
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,247.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PTHW242430G2
North Coast Part # 821747

Features

  • Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
  • Solid door provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet

Specifications

  • Height (H) (inch): 24.09
  • Height (H) (millimetre): 612
  • Width (W) (inch): 23.62
  • Width (W) (millimetre): 600
  • Depth (D) (inch): 29.92
  • Depth (D) (millimetre): 760
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Rack Units: 12
  • Optional Wood Panel: CP2020W
  • Optional Steel Panel: CP2020
  • Additional Rack Angles: PTRA24T or PTRA24S
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.9
  • Color: Light Gray
  • Color Code: RAL 7035
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.52
  • Finish: Powder Coated
  • Sub Brand: ProTek
  • Height: 24.09 in
  • Width: 23.62 in
  • Depth: 29.92 in

Related Products

Accessory

  • PTRA24T
  • PTRA24S
  • CP2020
  • CP2020W
  • AS1032
  • P1032CN
  • CPMK24
  • EMS1922
  • EMSV1922
  • EMS1918
  • EMSV1918
  • ESH1917
  • ESH1915
  • ESH1915V
  • ELHP
  • EPL4
  • DL36
  • PTWK
  • PTWPSS

Overview

UPC 78351023638
Item Long Description ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-inch rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.
GTiN 00783510236380
Finish Powder Coated
Width 23.62 in
Color Light Gray
Type Window Door
Material Steel
Applications Controls and Drives, Datacom and Telecom Equipment, Networking, Storage and Data Center
Depth 29.92 in
Height 24.09 in
Standard CUL Listed Per CSA C22.2 No. 94; File Number E619967,IEC 60529, IP66 Or IP55, IK 10,NEMA / EEMAC: Type 4, 4X Or 12,Solid Door, Stainless Steel: Type 4, 4X And 12,Solid Door: Type 4 And 12,UL 508A Listed; File Number E61997,Window Door: Type 12
Family Brand Name Hoffman
Rack Unit 12
Sub Brand ProTek
Cover Type Double Hinged
Body Thickness 1.9 mm
