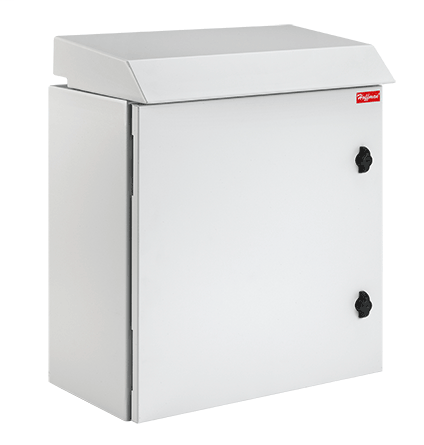

NVENT HOF PTRS242424G3 PTK Sgl SD 2
$1,735.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PTRS242424G3
North Coast Part # 935798

Overview

  • Industry Standards: UL 508A Listed; File Number E61997 cUL Listed per CSA C22.2 No. 94; File Number E61997 Solid Door: Type 3R Window Door: Type 1 NEMA / EEMAC: Type 1 or 3R IEC 60529, IP30 or IP 32, IK 10
  • Bulletin Number: DWS12
  • Material: Steel
  • Model Code: 23593
  • Ship Wt. Std. Pkg. (lbs): 114.0
  • Interchangeable: False
  • IP Rating: IP32

Specifications

  • Doors made of 16 gauge and body made of 14 gauge steel
  • Window made of .25-in. safety glass
  • Integral top with two 6-in. (272 CFM) or 4-in. (113 CFM) fans powered by 120 VAC via cord with standard NEMA plug 5-15P
  • Incoming air filter made of expanded aluminum
  • Rack angles made of 12 gauge plated steel
  • M6 door and body ground studs are masked from paint
  • Twenty 10-32 rack angle equipment mounting screws included with cabinet
  • Foam-in-place gasket made of durable polyurethane
  • Inline thermostat turns fans on when temperature exceeds 85 F/30 C

Technical Data

  • Height (A) in.: 24.09
  • Width (B) in.: 23.62
  • Depth (C) in.: 24.02
  • Rack Units: 12
  • F in.: 21.72
  • G in.: 26.75
  • R in.: 14.28
  • Optional Steel Panel: CP2020
  • Optional Wood Panel: CP2020W
  • Additional Rack Angles a: PTRA24T or PTRA24S

Applications

  • PROTEK Single-Door Fan Package cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. An integral top solar/drip shield and thermostatically-controlled fans provide airflow to cool internal equipment. Cabinets are available in UL Type 3R for indoor/ outdoor use. A UL Type 1 window-door version is available for indoor applications. The integral fans provide cooling for internallymounted equipment. The enclosures provide protection against water, dirt and other contaminants. PROTEK is an excellent choice for applications where space is at a premium and the only option is wall mounting. PROTEK comes in a broad range of sizes, materials and configurations to meet many demanding applications.

Notes

  • Performance data based on:
  • Effective measured airflow provided by integral fans is 272 CFM (6-in.) or 113 CFM (4-in.)
  • Delta T or ΔT (Ambient Temperature – Maximum in-cabinet Temperature)
  • Ambient air must be cooler than maximum in-cabinet temperature
  • For applications that have less than a ΔT of 5 F, use PROTEK with AC unit
  • Total Cooling = (Air cooling + Cabinet cooling)
  • Air Cooling [Watts = .316 x CFM x ΔT] Cabinet cooling [Watts = (.22 x Area) / ΔT]
  • Example: Cabinet height 24 in. x 24 in. deep with ambient temperature 110 F, with a maximum internal cabinet temperature 120 F (ΔT = 10 F). The cabinet and fans will provide a total cooling capability of 762 Watts or 1300 BTU.
  • (See Performance Charts)

Features

  • Solid-door cabinet provides complete physical and visual protection
  • Integral top solar/drip shield
  • Two thermostatically-controlled, long-life, high-performance fans mounted into top
  • Perforated, vented base with internal, expanded metal, serviceable filter
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Door and body are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Keylocking wing knob provides access control to the cabinet; two keys are included with each cabinet
  • Additional rack angles in tapped and square-hole versions can be added to the cabinet
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-toback, is provided with each cabinet
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately

Finish

  • Pretreated steel coated with light-gray, low-gloss, lightly textured RAL 7035 polyester powder

Load Ratings

  • 24 in. 250 lb./90.7 kg
  • 36 in. 300 lb./136.1 kg
  • 48 in. 400 lb./181.4 kg

Overview

UPC 78351023593
GTiN 00783510235932
Finish Lt Gray
Width 23.62 in
Color Gray
Type Rack and Cabinet Accessories
Material Steel
Applications Controls and Drives; Datacom and Telecom Equipment; Networking, Storage and Data Center
Depth 24.02 cm
Height 24.09 in
Standard CUL Listed Per CSA C22.2 No. 94,File Number E61997,IEC 60529,IP30 Or IP 32,NEMA / EEMAC: Type 1 Or 3R,Solid Door: Type 3R,UL 508A Listed,Window Door: Type 1
Family Brand Name Hoffman
NEMA 3
IP Rating IP32
Sub Brand ProTek
