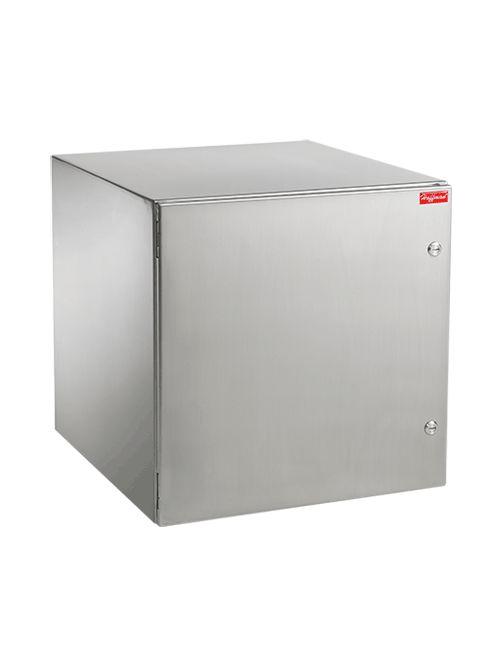

NVENT HOF PTRS242424X PTK Sgl SD 24
Product image thumbnail 0
Product image thumbnail 1
$2,145.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PTRS242424X
North Coast Part # 820158

Features

  • Solid-door cabinet provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately

Specifications

  • Height (H): 612 millimetre
  • Width (W): 600 millimetre
  • Depth (D): 610 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 12 Indoor, dust-resistant
  • Rack Units: 12
  • Optional Steel Panel: CP2020
  • Optional Wood Panel: CP2020W
  • Additional Rack Angles: PTRA24T or PTRA24S
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #3
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351024052
GTiN 00783510240523
Width 23.62 in
Type Rack and Cabinet Accessories
Material STAINLESS STEEL
Applications Controls and Drives; Corrosive Environments; Datacom and Telecom Equipment; Networking, Storage and Data Center
Depth 24.02 in
Height 24.09 in
Family Brand Name Hoffman
Rack Unit 12
Sub Brand ProTek
Finish Brushed
Thickness 1.9 Millimetre mm
