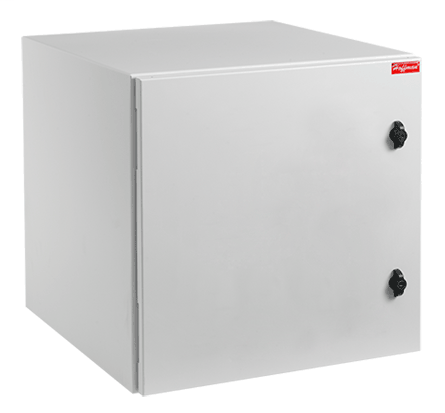

Hoffman PTRS362424G4 36 x 24 x 24 Inch Steel NEMA 4/12 Solid Door Wall Mount Cabinet
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PTRS362424G4
North Coast Part # 880100


  • Solid-door cabinet provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Keylocking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted frontto- back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
  • Doors and body made of 14 gauge steel
  • Stainless steel enclosures made from Type 304 stainless steel
  • Window made of .25-in. thick, scratch- and impact-resistant safety glass
  • Rack angles made of plated 12 gauge steel
  • M6 ground studs on the door and body are masked from paint
  • Twenty 10-32 screws included with cabinet
  • Foam-in-place gasket made of durable polyurethane


  • Bulletin Number: DWS12
  • Model Code: 23581
  • Ship Wt. Std. Pkg. (lbs): 95.0
  • Interchangeable: False
  • Catalog Number: PTRS362424G4
  • A in.: 36.3
  • B in.: 23.62
  • C in.: 24.02
  • Rack Units: 19
  • F in.: 21.72
  • S in.: 1.11
  • Optional Steel Panel: CP3220
  • Optional Wood Panel: CP3220W
  • Additional Rack Angles a: PTRA36T or PTRA36S
  • Description: Solid Door
  • Standards: UL 508A Listed; File Number E61997 || cUL Listed per CSA C22.2 No. 94; File Number E61997 || Solid Door: Type 4 and 12 || Window Door: Type 12 || Solid Door, Stainless Steel: Type 4, 4X and 12 || NEMA / EEMAC: Type 4, 4X or 12 || IEC 60529, IP66 or IP55, IK 10


UPC 78351023581
GTiN 00783510235819
Finish Lt Gray
Width 23.62 in
Color Gray
Type Rack and Cabinet Accessories
Material Steel
Applications Controls and Drives; Datacom and Telecom Equipment; Networking, Storage and Data Center
Depth 24.02 in
Height 36.3 in
Family Brand Name Hoffman
Rack Unit 19
Sub Brand ProTek
