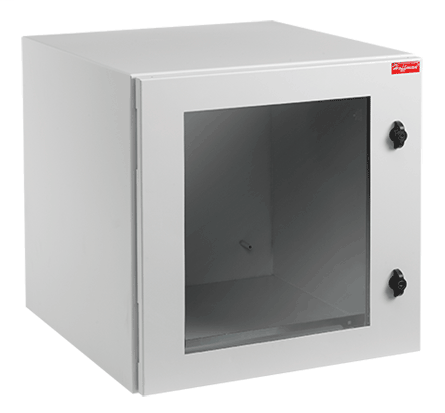

Hoffman PTRW242412G2 24 x 24 x 12 Inch Steel NEMA 4/12 Window Door Wall Mount Cabinet
$870.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # PTRW242412G2
North Coast Part # 757116

Features

  • Solid-door cabinet provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Keylocking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted frontto- back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
  • Doors and body made of 14 gauge steel
  • Stainless steel enclosures made from Type 304 stainless steel
  • Window made of .25-in. thick, scratch- and impact-resistant safety glass
  • Rack angles made of plated 12 gauge steel
  • M6 ground studs on the door and body are masked from paint
  • Twenty 10-32 screws included with cabinet
  • Foam-in-place gasket made of durable polyurethane

Specifications

  • Bulletin Number: DWS12
  • Model Code: 23584
  • Ship Wt. Std. Pkg. (lbs): 40.0
  • Interchangeable: False
  • Catalog Number: PTRW242412G2
  • A in.: 24.09
  • B in.: 23.62
  • C in.: 11.81
  • Rack Units: 12
  • F in.: 9.51
  • S in.: 1.11
  • Q in.: 15.38
  • P in.: 18.25
  • Optional Steel Panel: CP2020
  • Optional Wood Panel: CP2020W
  • Additional Rack Angles a: PTRA24T or PTRA24S
  • Description: Window Door
  • Standards: UL 508A Listed; File Number E61997 || cUL Listed per CSA C22.2 No. 94; File Number E61997 || Solid Door: Type 4 and 12 || Window Door: Type 12 || Solid Door, Stainless Steel: Type 4, 4X and 12 || NEMA / EEMAC: Type 4, 4X or 12 || IEC 60529, IP66 or IP55, IK 10

Overview

UPC 78351023584
GTiN 00783510235840
Finish Lt Gray
Width 23.62 in
Color Gray
Type PROTEK Single-Door, UL and NEMA Type 4, 12
Material Steel
Applications PROTEK Single-Door cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-in. rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. PROTEK is an excellent choice for applications where space is at a premium and the only option is wall mounting. PROTEK comes in a broad range of sizes, materials and configurations to meet many demanding applications.
Depth 11.81 in
Height 24.09 in
Family Brand Name Hoffman
Rack Unit 12
Sub Brand ProTek
