Manufacturer Hoffman Engineering
Mfg Catalog # PVCMX128
North Coast Part # 1168905



  • Use the “Cable Managers by Width” table to determine the number of cable managers required for different combinations of cable manager, cabinet and equipment widths.


  • Bulletin Number: DPY
  • Material: Steel
  • Model Code: 16017
  • Ship Wt. Std. Pkg. (lbs): 50.0
  • Interchangeable: False
  • Catalog Number: PVCMX128
  • A in.: 42.02
  • B in.: 3.94
  • C in.: 6.27
  • W in.: 5.33


UPC 78351016017
GTiN 00783510160173
Width 3.94 in
Size fits 800mm wide in
Color Black

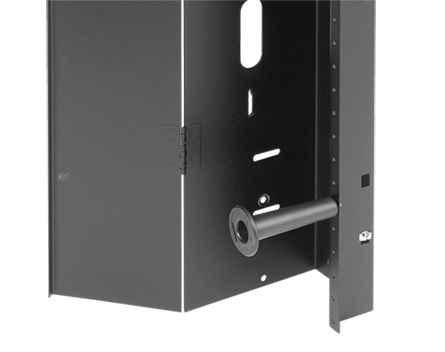

Type Vertical Cable Manager for 700- and 800-mm Wide Cabinets
Material Steel
Applications For routing and bundling cable inside 700- and 800-mm wide PROLINE cabinets. Variety of sizes provides mounting flexibility. Mounts between frame and rack angle so equipment can be centered or aligned on one side. Replaces reducing brackets that bridge space between cabinet and equipment and allows front-to-back adjustment of rack angles. Latching hinged door on front conceals wiring yet allows easy access. Movable plastic spools help manage cables. 14 and 16 gauge steel with RAL 9005 black polyester powder paint finish.
Depth 6.27 in
Height 42.02 in
Family Brand Name Hoffman
Sub Brand Proline
