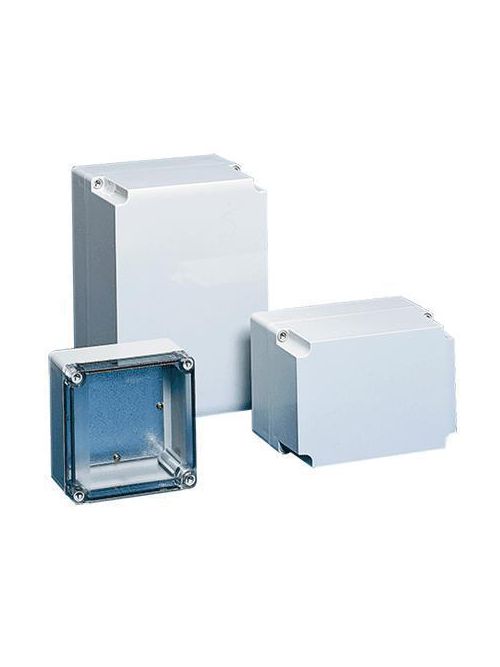

Hoffman Q131310PCECC 4.67 x 4.67 x 3.64 Inch Light Gray Polycarbonate NEMA 4X Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$56.30/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q131310PCECC
North Coast Part # 1014079

Features

  • Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
  • Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Cross-point flush cover screws are strong, durable polyamide
  • Cover includes a molded-in wire lead hole
  • Mounting tracks along body side walls for PC card installation
  • Molded internal pads for mounting optional panels, rails and other components
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Material is halogen free

Specifications

  • Height (H) (inch): 4.67
  • Height (H) (millimetre): 119
  • Width (W) (inch): 4.67
  • Width (W) (millimetre): 119
  • Depth (D) (inch): 3.64
  • Depth (D) (millimetre): 92
  • Protection Rating: NEMA Type 12
  • Material: Polycarbonate
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 3.86 x 3.86
  • Panel Size (D x E) (millimetre): 98 x 98
  • Mounting (G x H) (inch): 4.33 x 4.33
  • Mounting (G x H) (millimetre): 110 x 110
  • External Dimensions (L x W) (millimetre): 125 x 125
  • External Dimensions (L x W) (inch): 4.92 x 4.92
  • Panel: Q1313PE
  • Cover Style: Clear
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP66
  • Body Thickness (inch): 0.12
  • Body Thickness (millimetre): 3
  • Color: Light Gray
  • Color Code: RAL 7035
  • Door Thickness (inch): 0.14
  • Door Thickness (millimetre): 4
  • Finish: Smooth Matte
  • Sub Brand: QLine
  • Size: 125x125x99mm

Related Products

Accessory

  • ASPB05075NM

Overview

UPC 78351014059
Item Long Description QLine E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller QLine products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
GTiN 00783510140595
Width 4.67 in
Size 125x125x99mm
Type Wall-Mount, Fiberglass and Thermoplastic
Material 14059
Applications Controls and Drives; Corrosive Environments
Depth 92 mm
Height 4.67 in
Standard CSA File No. 42186: Type 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP67,NEMA/EEMAC Type 4, 4X, 6, 12, 13,UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997
Family Brand Name Hoffman
Cover Style Clear
Sub Brand QLine
Finish Matte
Color Gray
Body Thickness 3 mm
