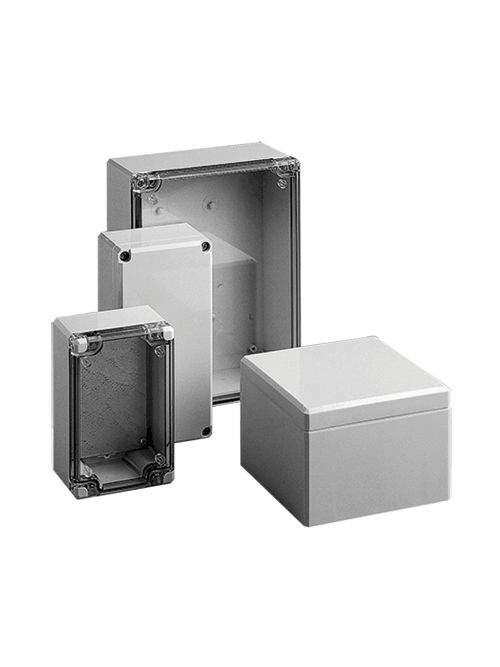

NVENT HOF Q1689ABD Enclosure 80x160
Product image thumbnail 0
Product image thumbnail 1
$44.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q1689ABD
North Coast Part # 606379

Features

  • Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross-point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails and other components
  • Panel mounting feature on both body and cover
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal

Specifications

  • Height (H): 80 millimetre
  • Width (W): 160 millimetre
  • Depth (D): 86 millimetre
  • Protection Rating: NEMA Type 12
  • Material: ABS
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E): 131 x 65 millimetre
  • Panel: Q168PD
  • Mounting (G x H): 5.83 x 1.97 inch
  • Cover Style: Opaque
  • External Dimensions (L x W): 160 x 80 millimetre
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Gloss
  • Thickness (T): 3 millimetre

Related Products

Accessory

  • ASPB05075NM

Overview

UPC 78351017199
GTiN 00783510171995
Width 6.3 in
Size 160 x 80 mm
Type Wall-Mount, Fiberglass and Thermoplastic
Material 17199
Applications Controls and Drives; Corrosive Environments
Depth 3.39 in
Height 3.15 in
Standard 12,13,4X,6,CSA File No. 42186: Ty,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Opaque
Sub Brand QLine
Finish Smooth Gloss
Color Gray
Thickness 3 Millimetre mm
