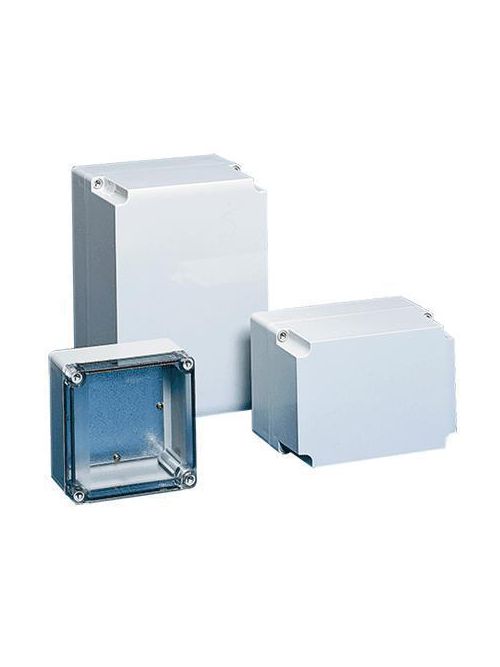

Hoffman Q181315PCECC 168.5 x 118.5 x 142.4 mm Enclosure
$67.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q181315PCECC
North Coast Part # 606999

Features

  • Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
  • Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Cross-point flush cover screws are strong, durable polyamide
  • Cover includes a molded-in wire lead hole
  • Mounting tracks along body side walls for PC card installation
  • Molded internal pads for mounting optional panels, rails and other components
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Material is halogen free

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately.

Accessories

  • Brass Inserts
  • Hardware Kit
  • Hinge Kit
  • Hol-Sealers Non-Metallic Hole Seals
  • Mounting Bracket Kit

Specifications

  • Bulletin Number: Q41
  • Material: 14179
  • Model Code: 0.67
  • Ship Wt. Std. Pkg. (lbs): False
  • Catalog Number: Q181315PCECC
  • A in.: 6.63
  • B in.: 4.67
  • C in.: 5.61
  • K in.: 3.94
  • F in.: 5.35
  • Panel Size D x E in.: 5.83 x 3.86
  • S in.: 5.51
  • Q in.: 3.94
  • P in.: 3.54
  • Mounting G x H in.: 6.30 x 4.33
  • External Dimensions L x W in.: 6.89 x 4.92
  • Panel: Q1813PE
  • Cover Style: Clear
  • Standards: UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP67 || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || IEC 60529, IP67

Overview

UPC 78351014179
GTiN 00783510141790
Width 4.67 in
Size 175x125x149mm
Type QLINE E, Type 4X
Material 14179
Applications QLINE E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller QLINE products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. , The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Depth 5.61 in
Height 6.63 in
Standard CSA File No. 42186: Type 4, 4X, 12, 13,UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,NEMA/EEMAC Type 4, 4X, 6, 12, 13,IEC 60529, IP67,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997
Family Brand Name Hoffman
Cover Style Clear
Sub Brand QLINE
