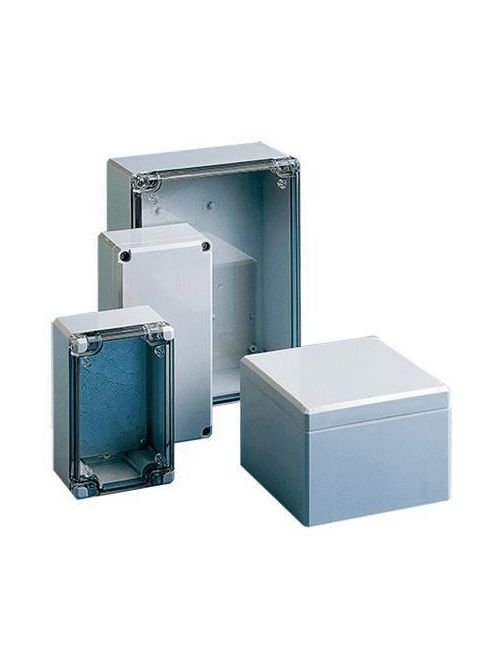

Hoffman Q20129PCDCC 193 x 113 x 79 mm Enclosure
Product image thumbnail 0
Product image thumbnail 1
$70.61/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q20129PCDCC
North Coast Part # 672182

Features

  • Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross-point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails and other components
  • Panel mounting feature on both body and cover
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal

Specifications

  • Height (H): 193 millimetre
  • Width (W): 113 millimetre
  • Depth (D): 79 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Polycarbonate
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E): 170 x 100 millimetre
  • Panel: Q2012PD
  • Cover Style: Clear
  • External Dimensions (L x W): 200 x 120 millimetre
  • Mounting (G x H): 188 x 90 millimetre
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Gloss
  • Thickness (T): 4 millimetre

Related Products

Accessory

  • ASPB05075NM

Overview

UPC 78351013869
GTiN 00783510138691
Width 4.45 in
Size 200 x 120 mm
Type Wall-Mount, Fiberglass and Thermoplastic
Material 13869
Applications Controls and Drives; Corrosive Environments
Depth 3.11 in
Height 7.6 in
Standard 12,13,4X,6,CSA File No. 42186: Ty,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Clear
Sub Brand QLine
Finish Smooth Gloss
Color Gray
Thickness 4 Millimetre mm
