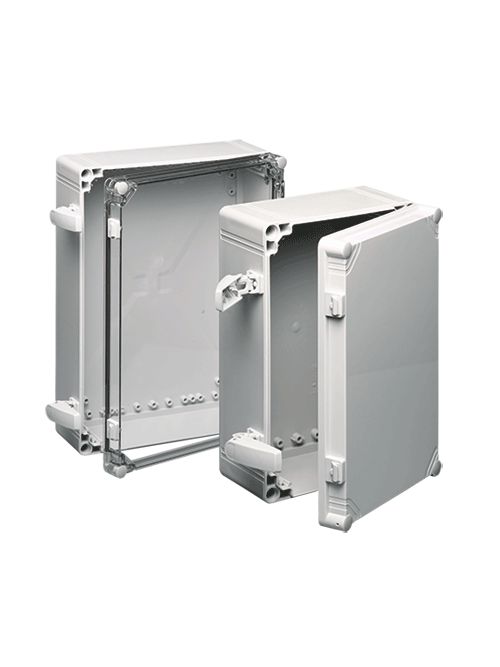

Hoffman Q202013PCIQRR 7.87 x 7.87 x 5.12 Inch Light Gray Polycarbonate NEMA 4X Enclosure
Product image thumbnail 0
Product image thumbnail 1
$136.40/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q202013PCIQRR
North Coast Part # 819307

Features

  • Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
  • Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Mounting holes molded directly under cover screws
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable-depth panel kit
  • Screws provided for mounting optional panel
  • Optional extension rings are molded polycarbonate
  • Cover includes a molded-in hole for wire lead
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal

Specifications

  • Height (H): 200 millimetre
  • Width (W): 200 millimetre
  • Depth (D): 130 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Polycarbonate
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E): 160 x 160 millimetre
  • Mounting (G x H): 180 x 180 millimetre
  • Panel: Q2020PI
  • Cover Style: Opaque
  • Latch Type: Quick Release Latch
  • External Dimensions (L x W): 7.87 x 7.87 inch
  • Modification Services: Yes
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Gloss
  • Thickness (T): 4 millimetre

Related Products

Accessory

  • QIHK
  • ASPB05075NM

Overview

UPC 78351015963
GTiN 00783510159634
Width 7.87 in
Size 200x200x123mm
Type QLINE I,Type 4X
Material 15963
Applications Controls and Drives; Corrosive Environments
Depth 5.12 in
Height 7.87 in
Standard 12,13,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Opaque
Sub Brand QLine
Finish Smooth Gloss
Color Gray
Thickness 4 Millimetre mm
