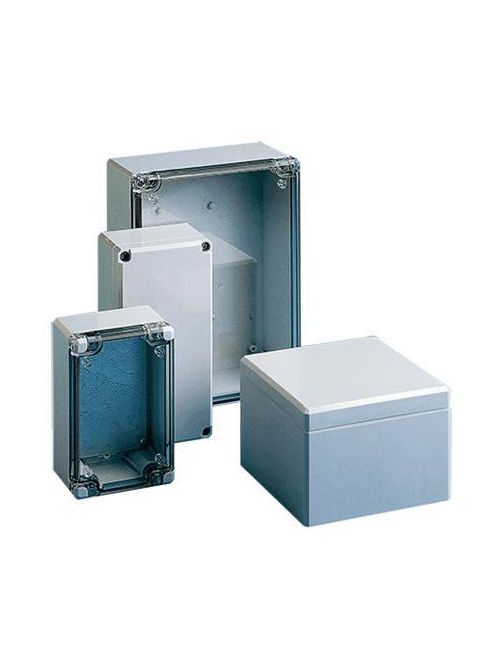

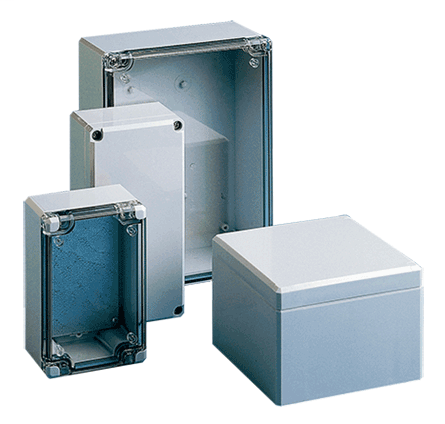

ENCLOSURE 233X153X83.5MM
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$83.98/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q24169PCDCC
North Coast Part # 548188

Features

  • Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross-point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails and other components
  • Panel mounting feature on both body and cover
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal

Specifications

  • Height (H) (inch): 9.17
  • Height (H) (millimetre): 233
  • Width (W) (inch): 6.02
  • Width (W) (millimetre): 153
  • Depth (D) (inch): 3.29
  • Depth (D) (millimetre): 84
  • Protection Rating: NEMA Type 12
  • Material: Polycarbonate
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 8.31 x 5.83
  • Panel Size (D x E) (millimetre): 211 x 148
  • Panel: Q2416PD
  • Cover Style: Clear
  • External Dimensions (L x W) (inch): 9.45 x 6.30
  • External Dimensions (L x W) (millimetre): 240 x 160
  • Mounting (G x H) (inch): 8.98 x 5.12
  • Mounting (G x H) (millimetre): 228 x 130
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Gloss
  • Thickness (T) (inch): 0.08
  • Thickness (T) (millimetre): 2
  • Sub Brand: QLine
  • Size: 240 x 160 mm

Related Products

Accessory

  • ASPB05075NM

Overview

GTiN 00783510138899
Width 6.02 in
Size 240 x 160 mm
Type Wall-Mount, Fiberglass and Thermoplastic
Material Polycarbonate
Applications Controls and Drives; Corrosive Environments
Depth 84 mm
Height 9.17 in
Standard 12,13,4X,6,CSA File No. 42186: Ty,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Clear
Sub Brand QLine
Product UPC 78351013889
Finish Smooth Gloss
Color Gray
Thickness 0.08 in
