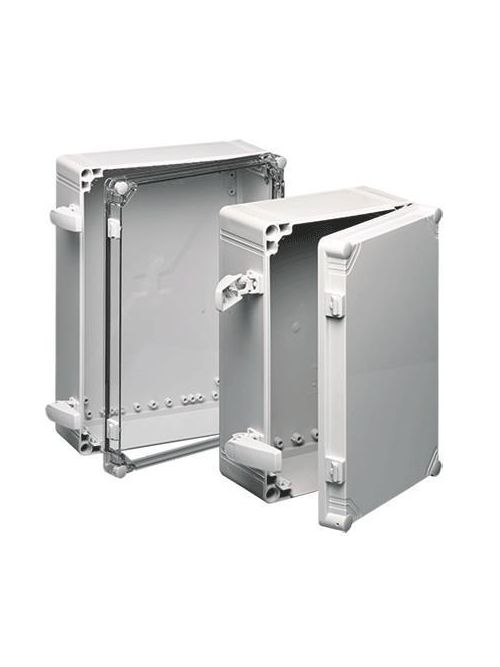

Hoffman Q402018PCIQRCCR 15.28 x 7.4 x 6.81 Inch Polycarbonate NEMA 4X Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$235.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q402018PCIQRCCR
North Coast Part # 666509

Features

  • Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
  • Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Mounting holes molded directly under cover screws
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable-depth panel kit
  • Screws provided for mounting optional panel
  • Optional extension rings are molded polycarbonate
  • Cover includes a molded-in hole for wire lead
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal

Specifications

  • Height (H) (inch): 7.87
  • Height (H) (millimetre): 200
  • Width (W) (inch): 15.75
  • Width (W) (millimetre): 400
  • Depth (D) (inch): 7.09
  • Depth (D) (millimetre): 180
  • Protection Rating: NEMA Type 12
  • Material: Polycarbonate
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 14.17 x 6.30
  • Panel Size (D x E) (millimetre): 360 x 160
  • Mounting (G x H) (inch): 14.96 x 7.09
  • Mounting (G x H) (millimetre): 380 x 180
  • Panel: Q4020PI
  • Cover Style: Clear
  • Latch Type: Quick Release Latch
  • External Dimensions (L x W) (millimetre): 400 x 200
  • External Dimensions (L x W) (inch): 15.75 x 7.87
  • Modification Services: Yes
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Gloss
  • Thickness (T) (inch): 0.14
  • Thickness (T) (millimetre): 4
  • Sub Brand: QLine
  • Size: 400x200x173mm

Related Products

Accessory

  • ASPB05075NM
  • QIHK

Overview

UPC 78351015986
Item Long Description The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
GTiN 00783510159863
Width 15.75 in
Size 400x200x173mm
Type QLINE I,Type 4X
Material 15986
Applications Controls and Drives; Corrosive Environments
Depth 180 mm
Height 7.87 in
Standard 12,13,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Clear
Sub Brand QLine
Finish Smooth Gloss
Color Gray
Thickness 0.14 in
