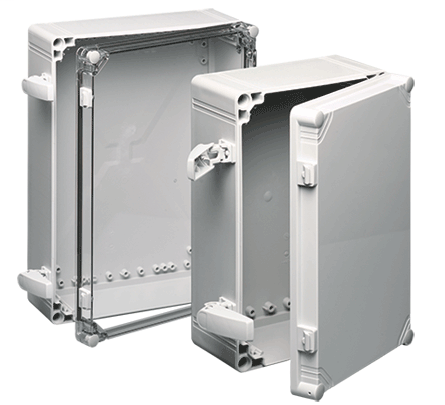

Hoffman Q403013PCI 15.28 x 11.34 x 4.84 Inch Light Gray Polycarbonate NEMA 4X Enclosure
Product image thumbnail 0
Product image thumbnail 1
$205.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q403013PCI
North Coast Part # 551687

Features

  • Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
  • Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Mounting holes molded directly under cover screws
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable-depth panel kit
  • Screws provided for mounting optional panel
  • Optional extension rings are molded polycarbonate
  • Cover includes a molded-in hole for wire lead
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal

Specifications

  • Height (H) (inch): 15.28
  • Height (H) (millimetre): 388
  • Width (W) (inch): 11.34
  • Width (W) (millimetre): 288
  • Depth (D) (inch): 4.84
  • Depth (D) (millimetre): 123
  • Protection Rating: NEMA Type 12
  • Material: Polycarbonate
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 14.17 x 10.24
  • Panel Size (D x E) (millimetre): 360 x 260
  • Mounting (G x H) (inch): 14.96 x 11.02
  • Mounting (G x H) (millimetre): 380 x 280
  • Panel: Q4030PI
  • Cover Style: Opaque
  • Latch Type: Screw Cover
  • External Dimensions (L x W) (millimetre): 400 x 300
  • External Dimensions (L x W) (inch): 15.75 x 11.81
  • Extension Ring: Q4030EXTI
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Gloss
  • Thickness (T) (inch): 0.14
  • Thickness (T) (millimetre): 4
  • Sub Brand: QLine
  • Size: 400x300x123mm

Related Products

Accessory

  • ASPB05075NM
  • QIHK

Overview

UPC 78351014689
Item Long Description The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
GTiN 00783510146894
Width 300 mm
Size 400x300x123mm
Color RAL 7035 Light Gray
Type QLINE I,Type 4X
Material Polycarbonate
Applications Provides Easy Access and Protects Larger Controls From Corrosive Environments
Depth 400 mm
Height 123 mm
Standard 12,13,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Opaque
Cover Type Screw, Opaque
Sub Brand Qline I
Finish Smooth Gloss
Thickness 0.14 in
