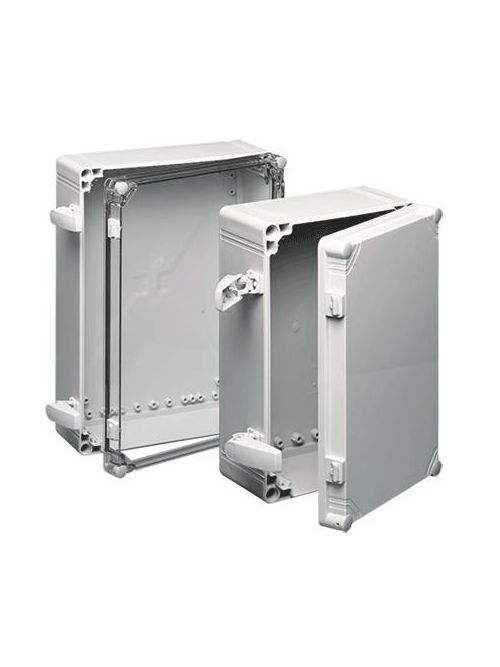

J BOX TYPE4X/ QR COVER
$294.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # Q603018PCIQRR
North Coast Part # 666797

Features

  • Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
  • Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Mounting holes molded directly under cover screws
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable-depth panel kit
  • Screws provided for mounting optional panel
  • Optional extension rings are molded polycarbonate
  • Cover includes a molded-in hole for wire lead
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Material is halogen free
  • Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
  • Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.

Notes

  • A x B x C are internal dimensions.
  • Purchase panels and extension rings separately.

Accessories

  • Brass Insert Kit
  • Cover Screw Kit
  • Extension Rings
  • Hardware Kit
  • H2Omit Vent Drains, Type 4X
  • Hinge Kit
  • Hol-Sealers Non-Metallic Hole Seals
  • Mounting Bracket Kit
  • Panel Depth Fitting

Specifications

  • Bulletin Number: Q41
  • Material: 15976
  • Model Code: 9.8
  • Ship Wt. Std. Pkg. (lbs): False
  • Catalog Number: Q603018PCIQRR
  • A in.: 11.81
  • B in.: 23.62
  • C in.: 7.09
  • F in.: 6.50
  • Panel Size D x E in.: 22.05 x 10.24
  • R in.: 9.45
  • S in.: 21.25
  • T in.: 8.66
  • Q in.: 21.65
  • P in.: 9.84
  • Mounting G x H in.: 22.83 x 11.02
  • Y in.: 7.87
  • U in.: 20.08
  • Panel: Q6030PI
  • Cover Type: QR Latch
  • Z in.: 19.69
  • Cover Style: Opaque
  • External Dim's L x W in.: 23.62 x 11.81
  • Standards: UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66

Categories

Overview

UPC 78351015976
GTiN 7.8351E+11
Width 23.62 in
Size 600x300x173mm
Type QLINE I,Type 4X
Material 15976
Applications Controls and Drives; Corrosive Environments
Depth 7.09 in
Height 11.81 in
Standard 12,13,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Style Opaque
Sub Brand QLine
