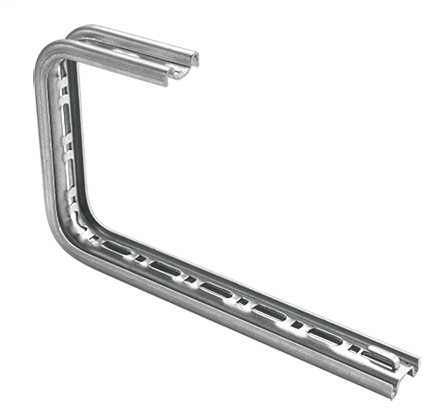

NVENT HOF QTPCB4 C BRACKET, 4in
$13.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # QTPCB4
North Coast Part # 818052

Features

  • The Quick Tray Pro C-Bracket is used for Quick Tray Pro installations under ceiling or overhangs
  • It is design allows it to mount to overhead structures while supporting the basket tray from the bottom
  • It is used with tray widths up to 12 inch (305 mm). To secure the basket tray to the bracket, use one QTPSSW3/QTPSSW3BLK Splice Washer and one QTPBNWK/QTPBNWKBLK Splice Kit on sizes up to 8 inch (203 mm); use two on 12-inch (305-mm) trays
  • It can be stacked for multi-level tray installations

Specifications

  • Material: Mild Steel
  • Tray Width: 102 millimetre
  • Modification Services: No
  • Color: Unpainted
  • Finish: Plated
  • Thickness (T): 2.66 millimetre

Overview

UPC 78351021376
GTiN 00783510213763
Finish Plated
Width 1 in
Type Cable Pathway - Bonding and Grounding
Material Steel
Applications Networking, Storage and Data Center
Depth 4 cm
Height 8 in
Family Brand Name Hoffman
Sub Brand Quick Tray Pro
Thickness 2.66 Millimetre mm
