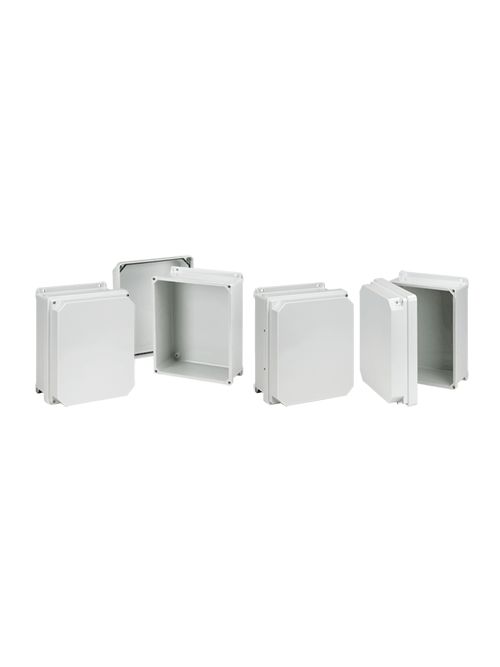

Hoffman RHJ1210HWLG Light Gray Fiberglass NEMA 4X Hinged Raised? Cover Enclosure
$180.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # RHJ1210HWLG
North Coast Part # 599094

Features

  • Compression-molded fiberglass construction
  • Overlapping solid raised-cover
  • Cover fastens with screws
  • Type 304 stainless steel piano hinges on hinged models
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Swing-Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: HJ
  • Material: Fiberglass
  • Model Code: 15857
  • Ship Wt. Std. Pkg. (lbs): 6.38
  • Interchangeable: False
  • Catalog Number: RHJ1210HWLG
  • A in.: 11.68
  • B in.: 9.69
  • C in.: 6.16
  • K in.: 3.15
  • L in.: 13.22
  • D in.: 7.05
  • F in.: 6.73
  • G in.: 12.75
  • H in.: 6.00
  • Panel Size in.: 10.75 x 8.88
  • J in.: 4.66
  • W in.: 11.22
  • Q in.: 8.25
  • P in.: 10.25
  • Steel Panel: A12P10
  • I in.: 13.51
  • Door Fasteners: Hinged,
  • Alum Panel: 2 screws
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Overview

UPC 78351015857
GTiN 00783510158576
Width 9.69 in
Size 13.30x11.29x7.10 in
Type Raised Cover with Screws, Type 4X
Material Fiberglass
Applications Enclosures feature a raised, overlapping-cover design that ensures a more-secure seal and offers increased internal space for mounting components. Available with removable and hinged covers for application flexibility.
Depth 6.16 in
Height 7.05 in
Standard CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,Enclosure Flammability Per UL 508A,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,IEC 60529, IP66
Family Brand Name Hoffman
Sub Brand J-Series
